(12-07) - POWER, PRE-CLEANER, PRE-SCREENER, S/N 1500 AND BELOW

Запчасти Case IH 1440 (12-07) - POWER, PRE-CLEANER, PRE-SCREENER, S/N 1500 AND BELOW Power

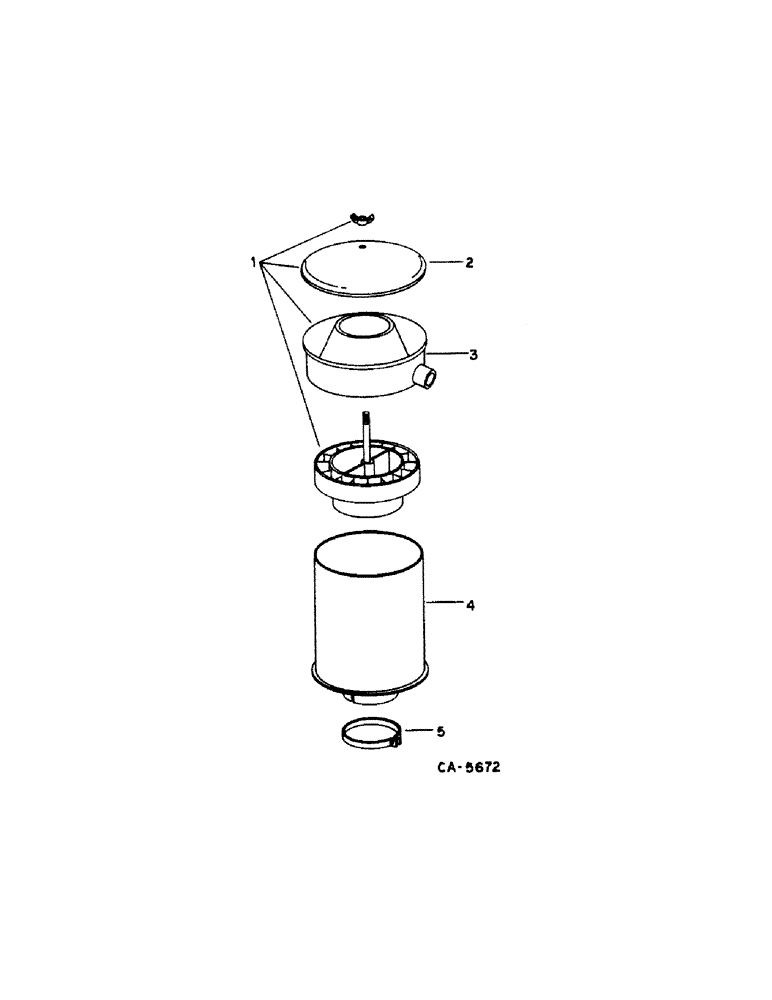

Схема запчастей Case IH 1440 - (12-07) - POWER, PRE-CLEANER, PRE-SCREENER, S/N 1500 AND BELOW Power
4
1
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

533100R91

PRESCREENER

PRE-CLEANER PRE-SCREENER ASSY, includes ref. nos. 1 through 5

1шт.

1

545252R91

CLEANER

PRE-CLEANER ASSY

1шт.

2

COVER ASSY, pre-cleaner, pre-screener (NSS)

1шт.

3

533251R1

BOWL

ASSY

1шт.

4

534801R1

BODY

ASSY

1шт.

5

875912R91

CLAMP

ASSY

1шт.
