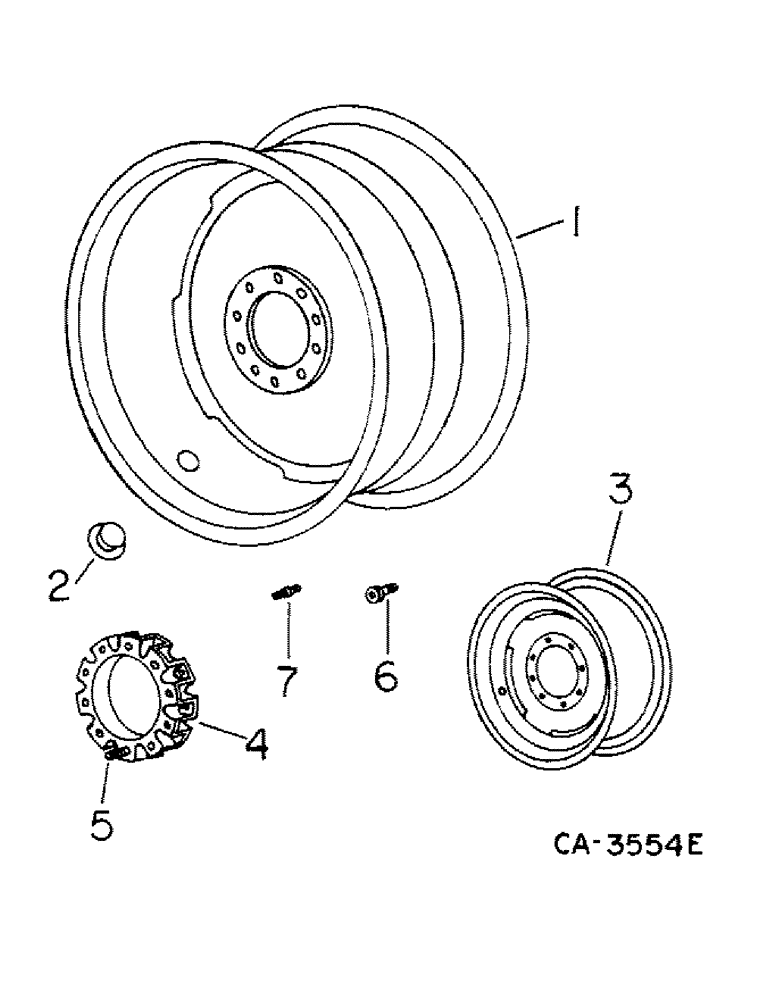

Запчасти Case IH 1460 (15-01) - WHEEL AND TRACTION, MAIN AND STEERING WHEEL RIMS AND DISC Wheels & Traction

1

193599C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 20 drive, or, for use with 23.1, 26 tires

2шт.

1

196197C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 25 drive, for use w/28L-26 tires

2шт.

1

194268C2

RIM

WHEEL ASSY, 30 x DW 30 drive, for use w/67 x 34-30 tires flo-grip tires

2шт.

1

193666C1

WHEEL

ASSY, 32 x DW 21 drive, for use w/24.5-32 tires

2шт.

1

193667C1

WHEEL

ASSY, 32 x DW 27 drive, for use w/30.5L-32 tires

2шт.

1

196196C2

WHEEL

ASSY, 34 x DW 20 drive, for use w/23.1-34 tires

2шт.

2

383697R1

PLUG

valve hose, for tube type tires

2шт.

2

417194C1

PLUG

valve hose, for tubeless tires

2шт.

3

188008C1

RIM

WHEEL ASSY, 16 x WH 10L steering, used with hub 391824R11, Serial Range: -42555

2шт.

Rim P/N 188008C1 has approx. 9 1/2-inch offset.

1шт.

3

672128R91

WHEEL

ASSY, 16 x WH 10L steering, used with hub 1259528C91, for use with knuckle and hub package 1323078C91, for use w/12.4-16 and 11.00-16 tires, Start Serial: 42556

2шт.

3

188009C1

RIM

WHEEL ASSY, 16 x WH 8L steering, for use w/10.00-16 tires

2шт.

3

196211C1

WHEEL

ASSY, 16.1 x 16 steering, use with hub 391824R11, Serial Range: -42555

2шт.

3

186642C2

WHEEL

ASSY, 16.1 x 16 steering, used with hub 1259528C91, for use with knuckle and hub package 1323078C91, grain and corn, for use with 18.4-16.1 tires, must maintain tread width of 85.9 in, Start Serial: 42556

2шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

3

186642C2

WHEEL

ASSY, 16.1 x 16 steering, rice, for use w/18.4 x 16.1 tires

2шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

3

177798C2

WHEEL (STEERING)

WHEEL ASSY, W 10 x 24 steering, for grain & corn, used with hub 391824R11, Serial Range: -42555

2шт.

3

188759C1

WHEEL

ASSY, W 10 x 24 steering, used with hub 1259528C91, for use with knuckle and hub package 1323078C91, for use with 11.2-24 tires, must maintain min. tread width 73.4 in., Start Serial: 42556

2шт.

3

188759C1

WHEEL

ASSY, w/10 x 24 steering, for rice, for use with 11.2 24 tires

2шт.

3

376196R91

WHEEL

ASSY, W 12 x 24 steering, for rice 5 in. center hole, for use with 14.9-24 tires

2шт.

3

174719C2

WHEEL (STEERING)

WHEEL ASSY, W8 x 24 DC steering, for use W/9.5-24 tires, use with hub 391824R11, Serial Range: -42555

2шт.

3

188928C1

WHEEL

ASSY, W12 x 24 steering, 8 in. center hole, for use W/14.9-24 tires & power guide wheels

2шт.

25676R1

NUT,5/8"-18, G8

5/8-NF PHC type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

4

178912C92

RETAINER

ASSY, drive wheel, in. spacer, includes ref. no. 5

2шт.

4

188124C91

RETAINER

ASSY, drive wheel, 2 in. spacers, includes ref. no. 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel spacer

20шт.

25632R1

NUT,3/4"-16, G8

3/4-NF PHC type 8

1шт.

6

179482C1

VALVE STEM

VALVE ASSY, tubeless main wheel

2шт.

6

536705R91

VALVE

ASSY, steering rim

2шт.

7

407184C1

VALVE STEM

CORE, tire

1шт.
