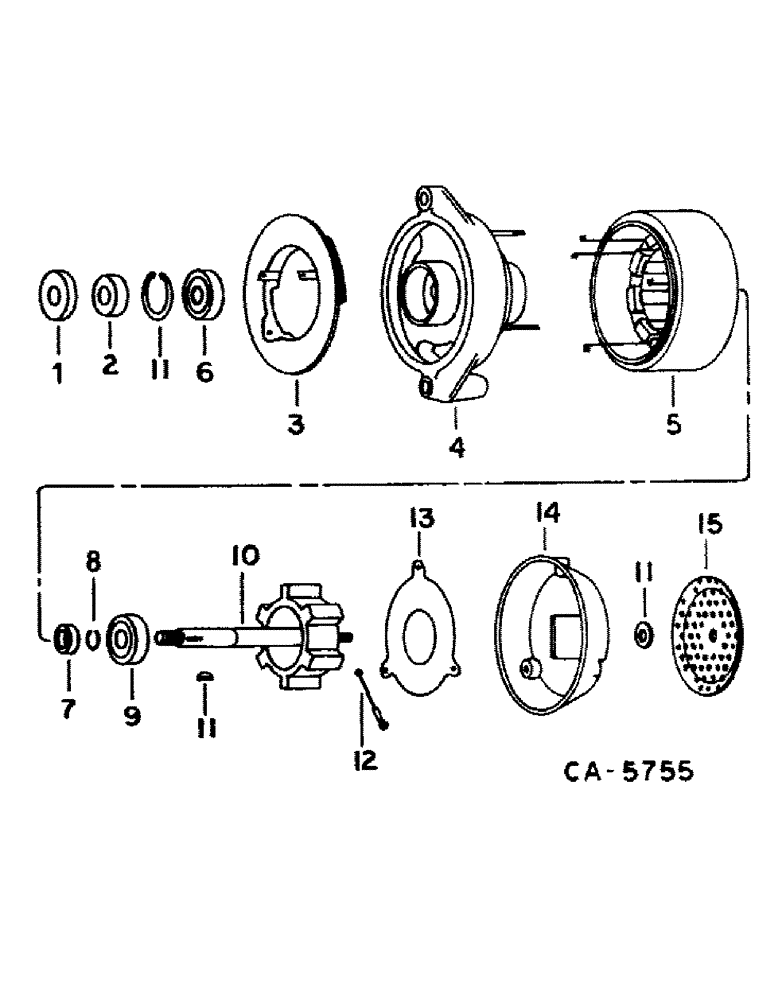

Запчасти Case IH 1460 (08-17) - ELECTRICAL, ALTERNATOR GENERATOR, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

.

ALTERNATOR GENERATOR ASSY, 90 amp, for service replacement of alt-gen 107639C91 and 146466C91 furnish alt-gen 245713C92 and package 91906C91, the following parts are for 107639C91 and 146466C91

1шт.

245713C92

ALTERNATOR

90 Amps

1шт.

91906C91

KIT

Alternataor Adaption

1шт.

103807A1R

REMAN-ALTERNATOR

90 Amp, Replacement for 245713C92

1шт.

1

130991C1

CUP WASHER

WASHER, front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER, front

1шт.

3

130994C1

AMPLIFIER ASSY.

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

130995C2

FRAME ASSY

FRAME ASSY, field winding and end

1шт.

5

130997C2

SHELL

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING, front

1шт.

7

130998C1

CUP WASHER

WASHER, retainer cup

1шт.

8

130993C1

RING

RING, retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, rear

1шт.

10

131000C1

ROTOR ASSY.

ROTOR ASSY

1шт.

11

131005C2

KIT

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

131001C1

REGULATOR

REGULATOR ASSY, voltage

1шт.

14

131002C1

COVER

COVER, voltage regulator

1шт.

15

131004C1

SCREEN

SCREEN

1шт.
