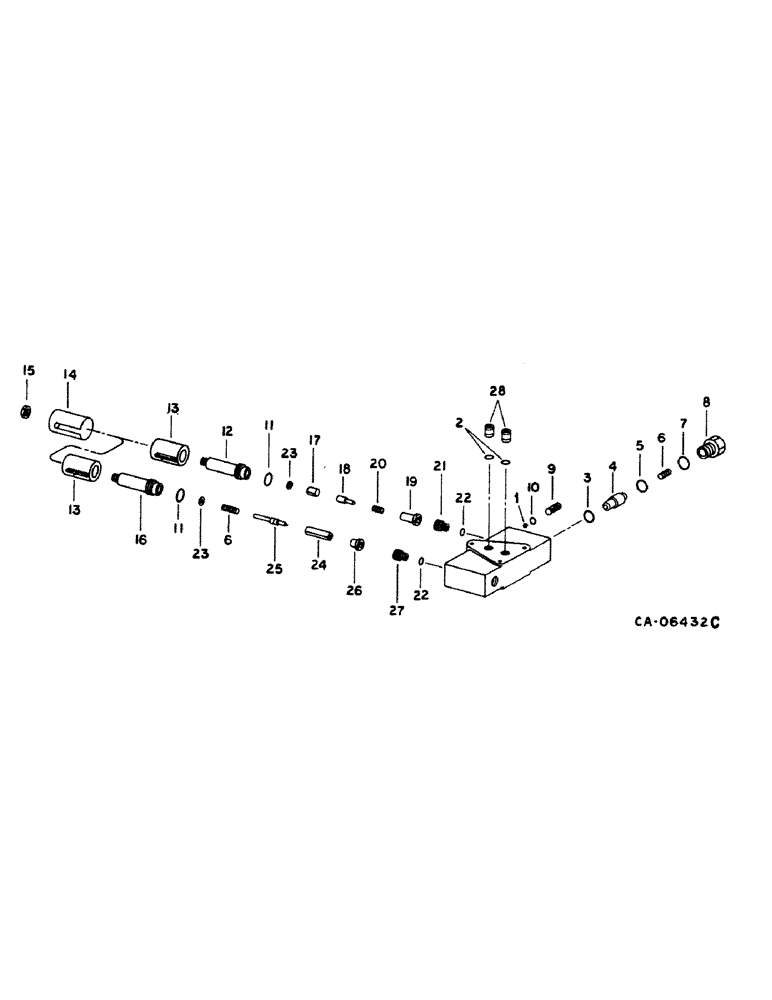

Запчасти Case IH 1460 (10-56) - HYDRAULICS, UNLOAD SINGLE BI-DIRECTIONAL VALVE, REEL LIFT (07) - HYDRAULICS

1301652C91

VALVE

unload/single bi-directional, includes Ref. nos. 1, 3 thru 12 and 16 thru 27

1шт.

1

1301635C1

PLUG

orifice

1шт.

2

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

4шт.

3

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

1шт.

4

1301651C1

PIN

1шт.

5

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 class 5

1шт.

6

1301640C1

SPRING

2шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

8

1301690C1

PLUG

end

1шт.

9

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, seal

1шт.

10

529909R1

O-RING,1.78mm Thk x 2.54mm ID

1шт.

11

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

2шт.

12

1301641C1

STUD

ASSY, N.O.

1шт.

13

1301633C1

COIL

SWITCH

2шт.

14

1301632C1

CAP

coil

2шт.

15

107825

NUT,Stamped, 1/2"-20

1/2-NF

1шт.

16

1301627C1

STUD

ASSY, N.C.

1шт.

17

1301643C1

VALVE

PIN, N.O.

1шт.

18

1301644C1

PIN

N.O., Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

19

1301646C1

BUSHING

N.O. pole

1шт.

20

1301821C1

SPRING

1шт.

21

1301625C1

ORIFICE

PISTON

1шт.

22

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

2шт.

23

1301642C1

WASHER

2шт.

24

1301648C1

ARMATURE

BUSHING, M.C.

1шт.

25

1301647C1

POPPET

PIN, bi-direct

1шт.

26

1301624C1

BUSHING

N.C. pole

1шт.

27

1301639C1

PISTON

1шт.

28

1301630C1

TUBE

PISTON, thru, tube

2шт.
