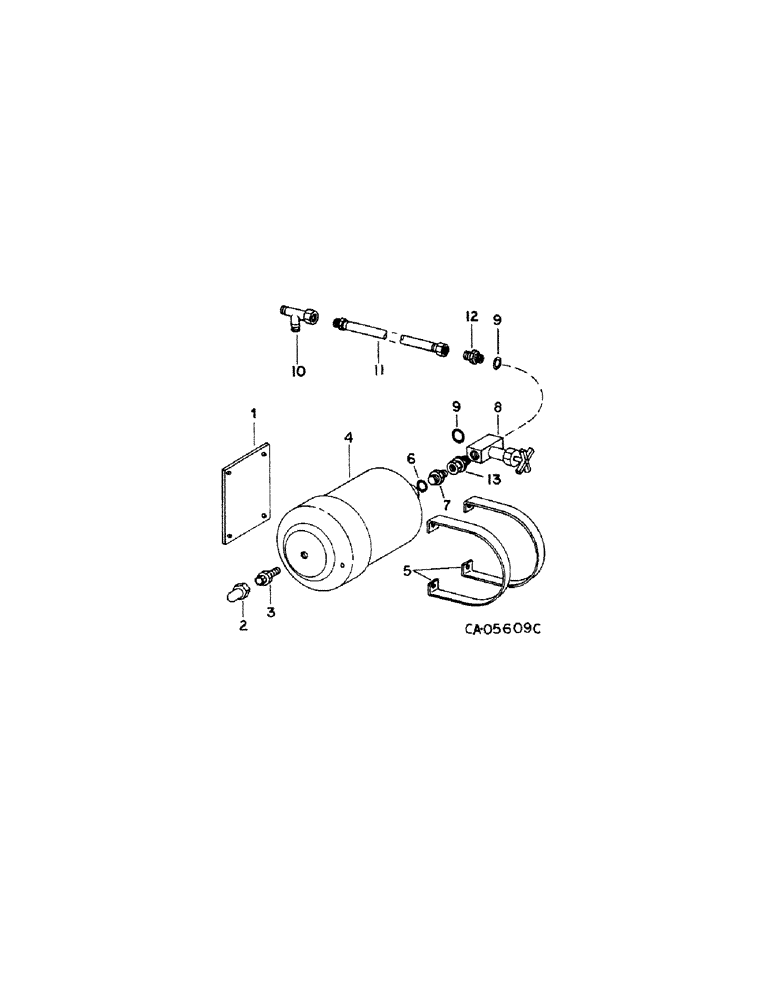

Запчасти Case IH 1460 (10-77) - HYDRAULICS, ACCUMULATOR, S/N 1501 AND ABOVE (07) - HYDRAULICS

1

196821C1

STRIP

accumulator

1шт.

2

172131C1

GUARD

accumulator tank valve

1шт.

3

172130C91

VALVE

ASSY, accumulator tank

1шт.

4

84927C91

TANK

ASSY, accumulator, replaces 196811C91 by also furnishing connector 380632R1 and o-ring 368269R1, includes Ref. nos. 2 & 3

1шт.

5

172133C1

SUPPORT

accumulator

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD, used with tank 196811C91

1шт.

6

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6, used with tank 84927C91

1шт.

7

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 37 deg flared, used with tank 196811C91

1шт.

7

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 1/2 sht, used with tank 84927C91

1шт.

8

183510C1

VALVE

ASSY, needle

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 in. OD

2шт.

10

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 37 deg, not for ahc

1шт.

11

574230R91

HOSE ASSY.

HOSE ASSY, accumulator, 29 in., not for ahc

1шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg, not for ahc

1шт.

13

1327736C1

ELBOW

CONNECTOR, 1/2 orb to 1/2 37 deg swivel

1шт.
