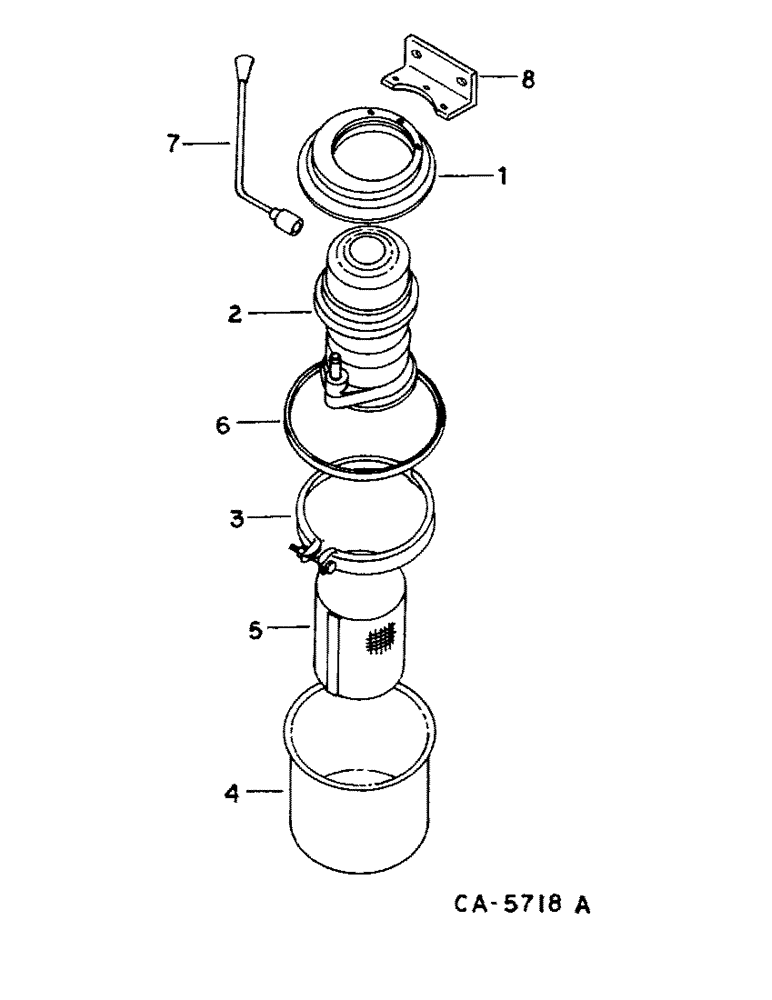

Запчасти Case IH 1460 (12-12) - POWER, FUEL PUMP, TOKHEIM, S/N 1501 THRU 52623 Power

174362C92

FUEL PUMP

PUMP ASSY, fuel, consists of ref. nos. 1 thru 6 and 8

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1

180921C1

FLANGE

mounting

1шт.

2

174475C91

PUMP, HYDRAULIC

PUMP ASSY

1шт.

3

174474C1

CLAMP

V-BAND

1шт.

4

174479C2

BODY

BOWL, fuel

1шт.

Ref. 4 can use Plug P/N 9410357 or P/N 9410358 for the bottom of the Fuel Bowl.

1шт.

5

174473C1

FILTER SCREEN

SCREEN

1шт.

6

174476C1

GASKET

RING, can gasket, used when ref. no. 1 has integral mounting bracket

1шт.

6

180923C1

GASKET

RING, can gasket, used when ref. no. 1 has separate mounting bracket

1шт.

7

174478C1

CABLE ASSY.

CABLE ASSY, electric

1шт.

8

180922C1

ANGLE

fuel pump

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.
