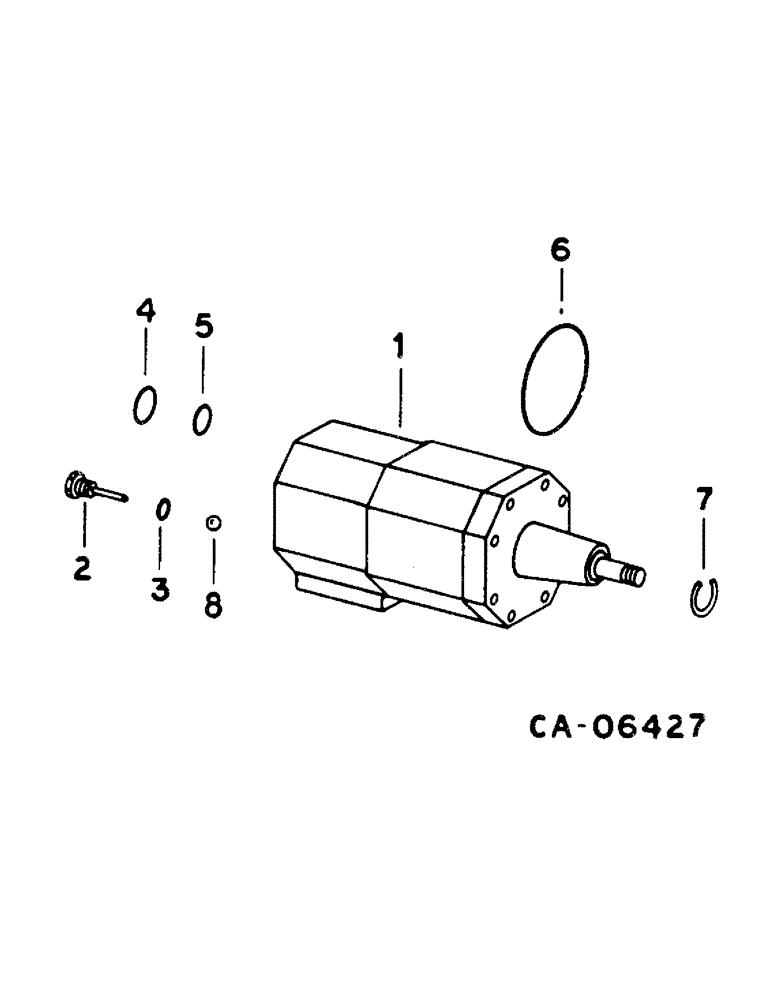

Запчасти Case IH 1460 (10-063) - STEERING HAND PUMP (07) - HYDRAULICS

1

1301285C91

PUMP

ASSY, STEERING HAND, WITH 1 - 8

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

2

1301867C91

PIN ASSY.

HYDR GUIDE, WITH 3

1шт.

3

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3/16 OD tube, Class 6

1шт.

4

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CLASS 6

1шт.

5

392382R1

O-RING,0.551" ID x 0.07" Width

CLASS 6

1шт.

6

1301870C1

O-RING,2.86" ID x 2.989" OD x 0.066"

2.86 ID X 2.989 OD X .066 CLASS 6

1шт.

7

383878C1

RING

1.388 INT RET

1шт.

8

17009R1

BALL

9/32 GRADE 25 METAL

1шт.

224712C1

SEAL KIT

HYDRA GUIDE SEAL, NOT ILLUSTRATED

1шт.

1301869C1

WASHER

KIT ASSY, HYDRA GUIDE, NOT ILLUSTRATED

1шт.
