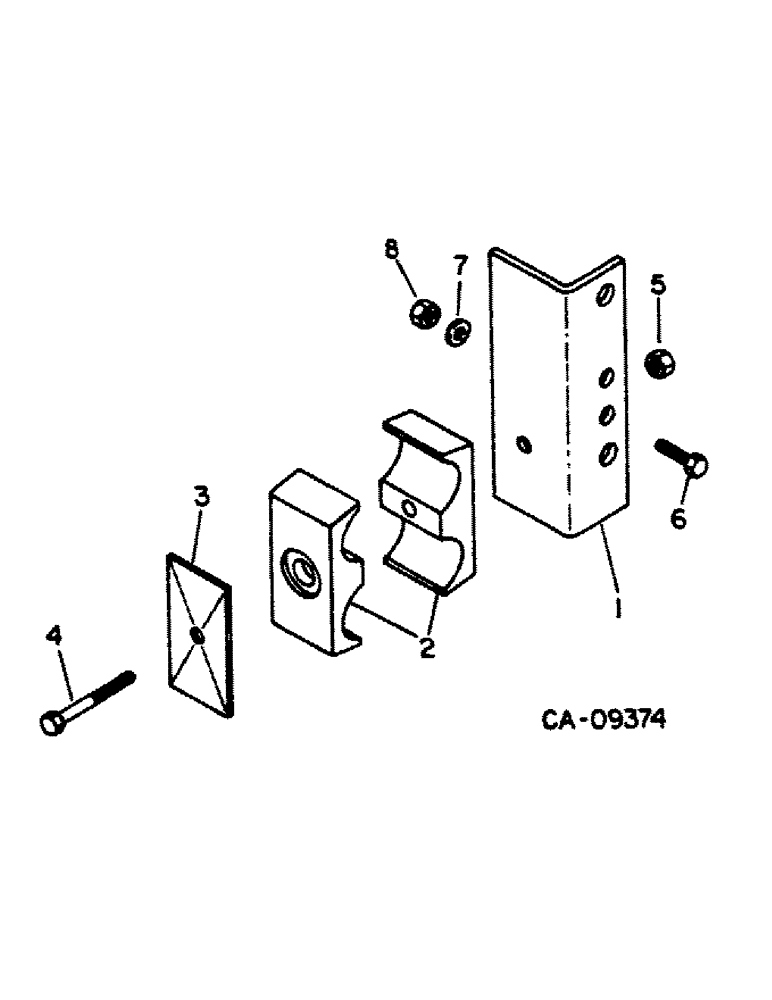

Запчасти Case IH 1480 (15-22) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54299 AND ABOVE, AXLE MOUNTING KIT Wheels & Traction

1315505C1

KIT

power guide axle mounting

1шт.

1

1324467C1

ANGLE

hose bracket

1шт.

2

1324473C1

CLAMP

hose

1шт.

3

1324469C1

PLATE

hose clamp

1шт.

4

25678R1

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 8

5/16 x 3-1/4 PHC type 8

1шт.

5

9413977

NUT

5/16 PHC P/T lock type 8

1шт.

6

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

120388

.438 x 1.000 x .064

2шт.

8

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 CAD P/T lock type 5

2шт.

1324450C1

SLEEVE

cordura hose, 3.29 ID x 36 in. long

2шт.
