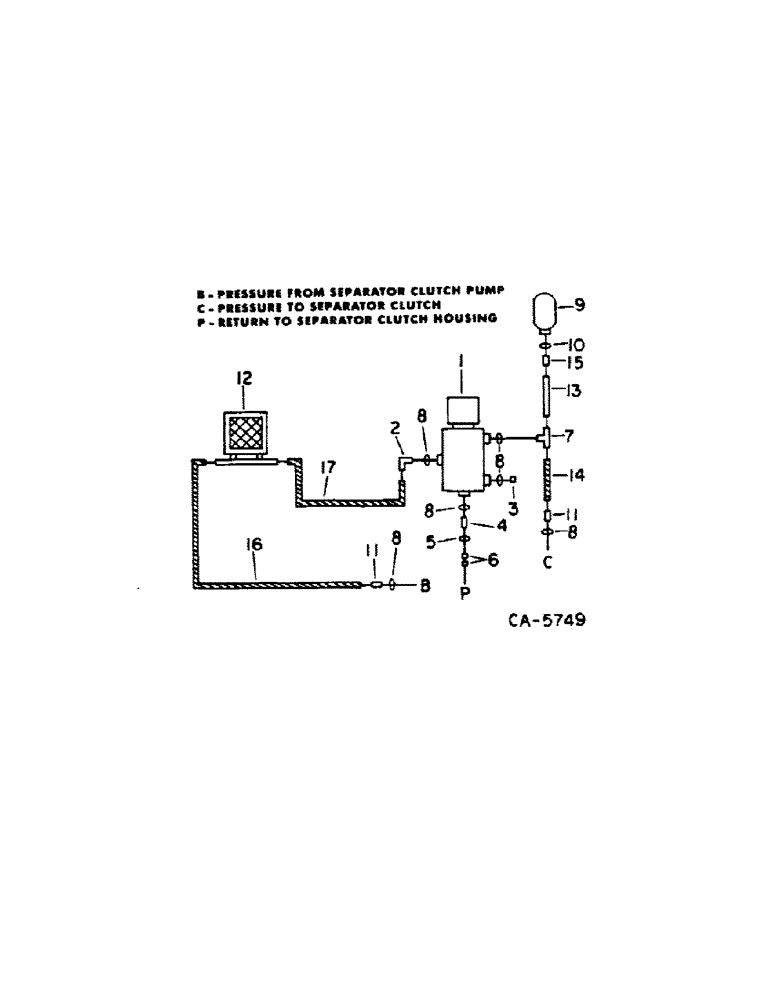

Запчасти Case IH 1480 (10-15) - HYDRAULICS, SEPARATOR CLUTCH DIAGRAM (07) - HYDRAULICS

1

VALVE, separator clutch, refer to this group under feeder and separator clutch valve

1шт.

2

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16-18 hyd. flared 90 deb

1шт.

3

9410358

PLUG

9/16-18 o-ring boss

1шт.

4

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 bulkhead

1шт.

5

156276C1

WASHER

rubber

1шт.

6

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

2шт.

7

183774C1

TEE

separator clutch

1шт.

8

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.

9

183776C2

VALVE

ACCUMULATOR, separator clutch

1шт.

186505C1

BOLT,U, 1/4" - 20 x 3.2"

accumulator mounting

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

11

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 hyd tube

2шт.

12

183747C1

OIL COOLER

COOLER, hydraulic clutch oil

1шт.

13

183775C1

HYD TUBE

TUBE ASSY, separator clutch

1шт.

14

183773C1

HOSE

ASSY, separator clutch to accumulator, 18 in., 457.2mm

1шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 flared tube

1шт.

16

183748C2

HOSE,12.7mm ID x 1460.5mm L, SAE 100R1

ASSY, separator clutch to cooler, 57.5 in., 1460.5mm

1шт.

17

183525C1

HOSE

ASSY, separator clutch to cooler, 45 in., 1143mm

1шт.
