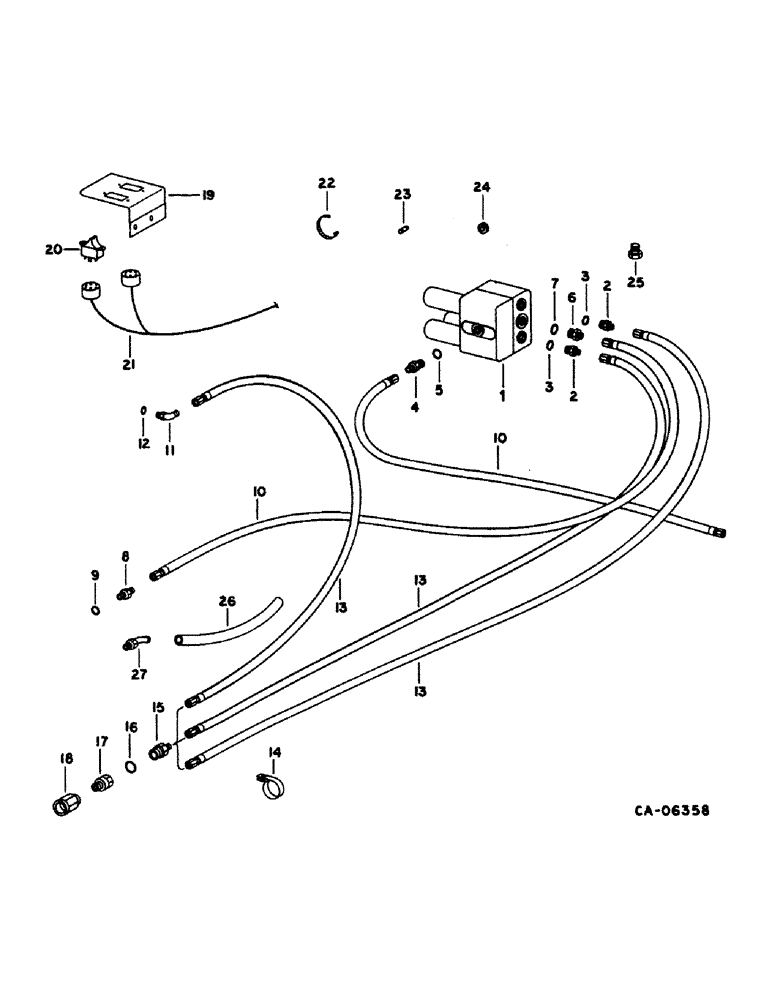

Запчасти Case IH 1480 (10-61) - HYDRAULICS, REEL SPEED CONTROLS, FOR FRENCH 825 HEADERS, FOR COMBINES S/N 24000 AND BELOW (07) - HYDRAULICS

1

VALVE ASSY, reel speed, refer to this group under reel speed valve

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

UNION, 7/16-20 x 9/16-18 short reducer

2шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

1шт.

6

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION, 9/16-18 x 3/4-16 short reducer

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

1шт.

8

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel for header lift valve

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

1шт.

10

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00"

2шт.

11

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 adj str thread 45 deg

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

1шт.

13

1301350C2

HYDRAULIC HOSE

HOSE ASSY, reel

3шт.

14

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1.375 coated closed for reel drive hoses

2шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

UNION, 9/16-18 x 7/8-14 short reducer

3шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

3шт.

17

3161090R1

COUPLING, BREAK AWAY

COUPLING, 7/8-14 hyd

3шт.

18

3177270R1

COUPLING, BREAK AWAY

COUPLING, hyd quick-attach

3шт.

19

1301344C1

SUPPORT

reel switch

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

1301348C1

SWITCH

ASSY, reel

2шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

1шт.

21

1301349C1

HARNESS

ASSY, reel control

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

22

702093C1

CABLE TIE

STRAP, reel control harness

1шт.

23

9426334

FUSE,10 Amp, Type 3AG

3AG 10amp

1шт.

24

195803C1

GROMMET

reel control harness

1шт.

25

9410361

PLUG

1-1/16-12 str-thd for hyd reservoir

1шт.

26

HOSE, header lift return, use 18 in. of 3/4 ID hose from 25 ft roll marked 180720C2

1шт.

27

67114C1

ELBOW

7/8-14 x 3/4 beaded tube 45 deg

1шт.
