(4-050) - FUSE AND FUSE BLOCK

Запчасти Case IH 1620 (4-050) - FUSE AND FUSE BLOCK (06) - ELECTRICAL

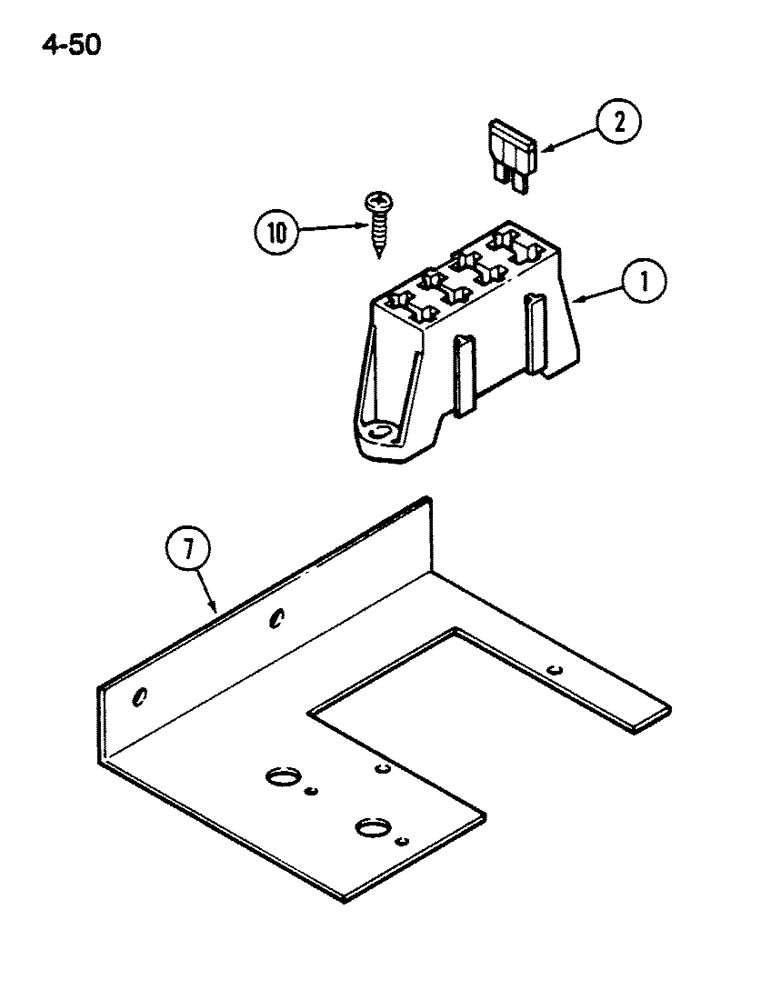

Схема запчастей Case IH 1620 - (4-050) - FUSE AND FUSE BLOCK (06) - ELECTRICAL
2
1
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245435C1

FUSE HOLDER

BLOCK - fuse, (part of console harness, see Figure 4-006)

3шт.

2

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

2шт.

2

A149800

FUSE,10 Amp

- 10 ampere (Red)

5шт.

2

A149804

FUSE

- 30 ampere (Light green)

1шт.

2

A149798

FUSE

- 5 ampere (Tan)

2шт.

2

A149796

FUSE

- 3 ampere (Violet)

2шт.

7

1280162C3

SUPPORT

- fuse block

1шт.

10

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tap, 1/4 x 1/2 inch

2шт.
