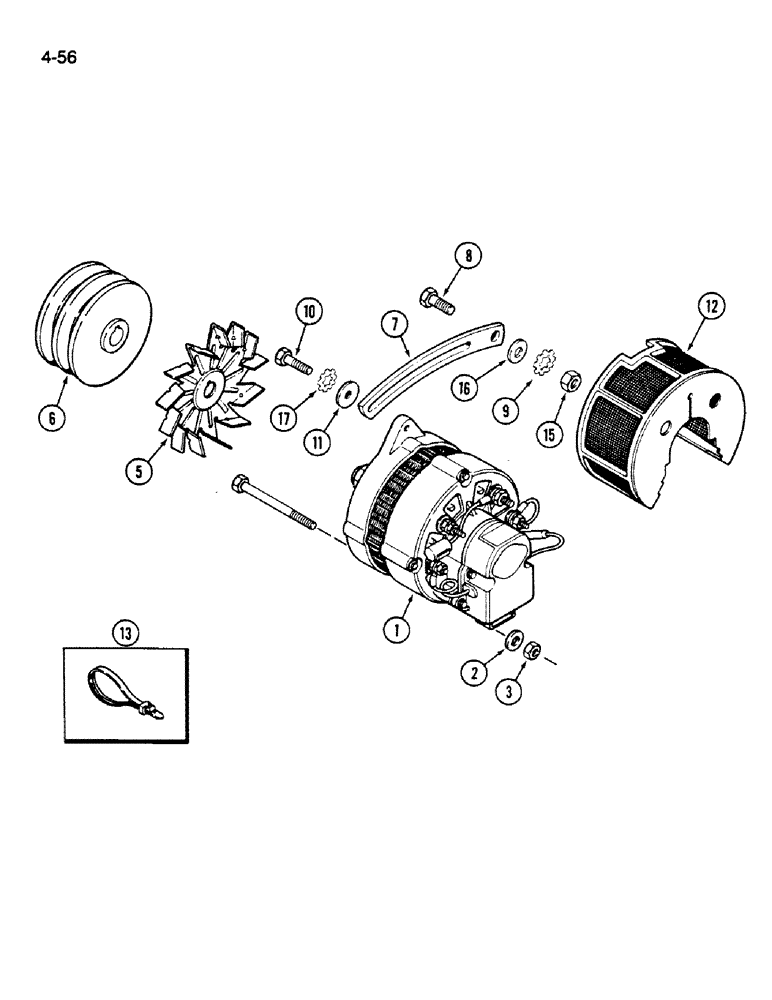

Запчасти Case IH 1620 (4-056) - ALTERNATOR MOUNTING (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 90 ampere, Motorola, see Figure 4-058

1шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

3

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

5

221425R1

FAN

- alternator

1шт.

6

121847C1

PULLEY

- alternator

1шт.

7

532418R1

BRACE

- alternator

1шт.

8

30033R1

BOLT,Hex, M10 x 90mm, Cl 10.9

- M10 x 90 mm, Class 8.8

1шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal/external lock, 3/8 inch

1шт.

10

1014921C1

BOLT

BOLT - M8 x 30 mm, Class 8.8

1шт.

11

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch (Optional with 30183R1)

1шт.

11

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 8/8 x 21 x 2.5 mm (Optional with 21496R1)

1шт.

12

245165C1

SHIELD

- alternator cover

1шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - shield, 14 in.

1шт.

15

905262R1

NUT,M10 x 1.5, Cl 10

NUT - hex, M10

1шт.

16

30176R1

WASHER,M10 x 21.5 x 2.5, HT

- flat, 11 x 21 x 3 mm

1шт.

17

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - external/internal lock, 5/16 inch

1шт.
