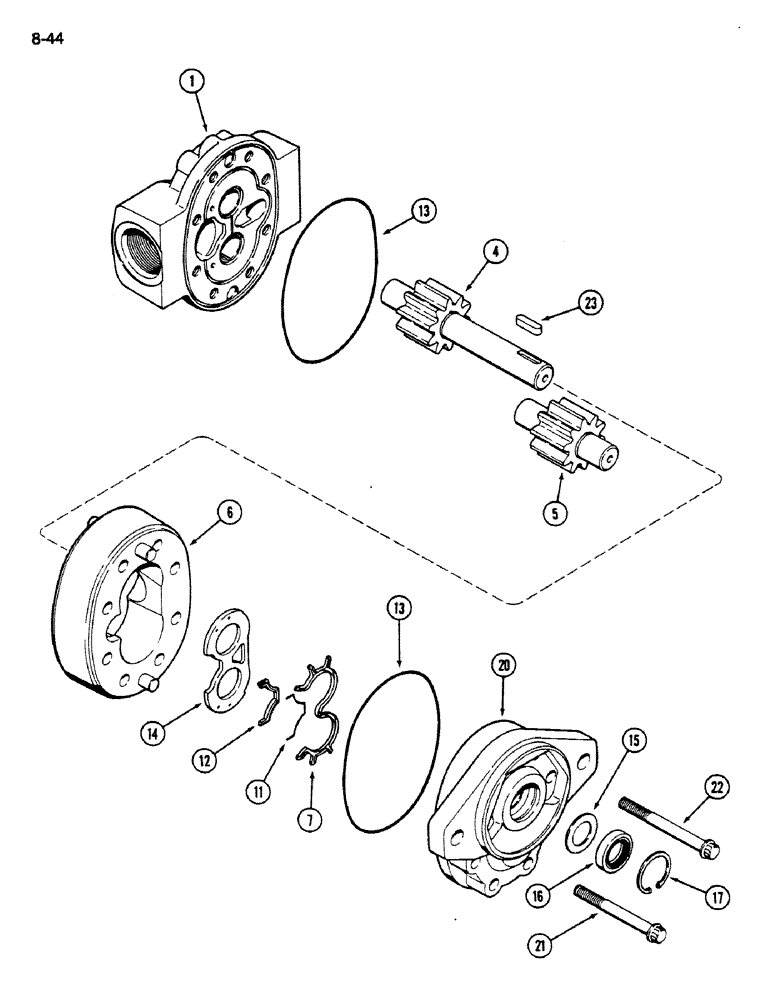

Запчасти Case IH 1620 (8-044) - REEL DRIVE PUMP ASSEMBLY (07) - HYDRAULICS

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

92586C1

SEAL KIT

- pump, Includes: Ref. 7 - 17

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

13

H756221

O-RING,4.987" ID x 5.193" OD

- body

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

16

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - shaft

1шт.

17

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

21

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - 12 point head, 3/8 NC 3-1/2 inch

4шт.

22

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point head, 3/8 NC x 3-3/4 inch

4шт.

23

H233445

KEY

- pump shaft

1шт.
