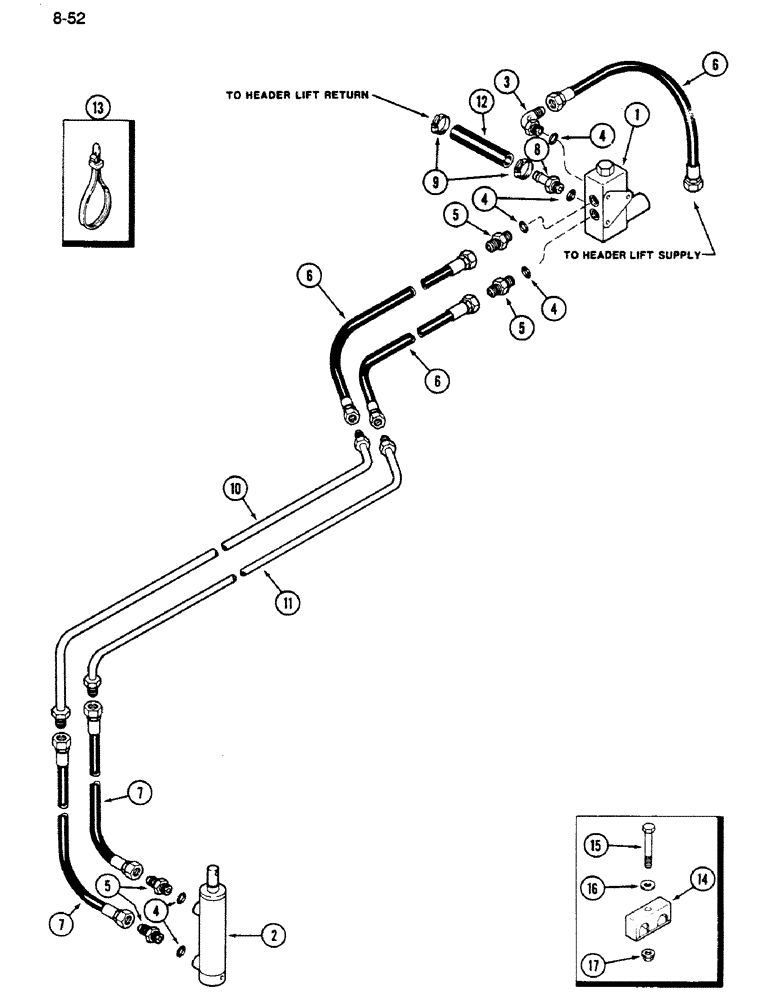

Запчасти Case IH 1620 (8-052) - FEEDER CLUTCH CIRCUIT, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch, see Figure 8-062

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder clutch, see Figure 8-066

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 tube 9/16-18 thread

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/8 tube 9/16-18 thread

4шт.

6

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder Clutch 0.31" ID x 20.00", SAE 100R1

3шт.

7

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE - feeder clutch, 30 inch

2шт.

8

178036C1

CONNECTOR, ELEC

FITTING - 3/8 tube 9/16-18 x 3/8 OD beaded tube

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

10

1301243C1

TUBE

- feeder clutch upper forward

1шт.

11

1301244C2

HYD TUBE

TUBE - feeder clutch upper rearward

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - return, 3/8 inch ID 15.5 inch (From bulk roll S118400)

1шт.

13

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

14

183825C1

CLAMP

- tube

2шт.

15

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.
