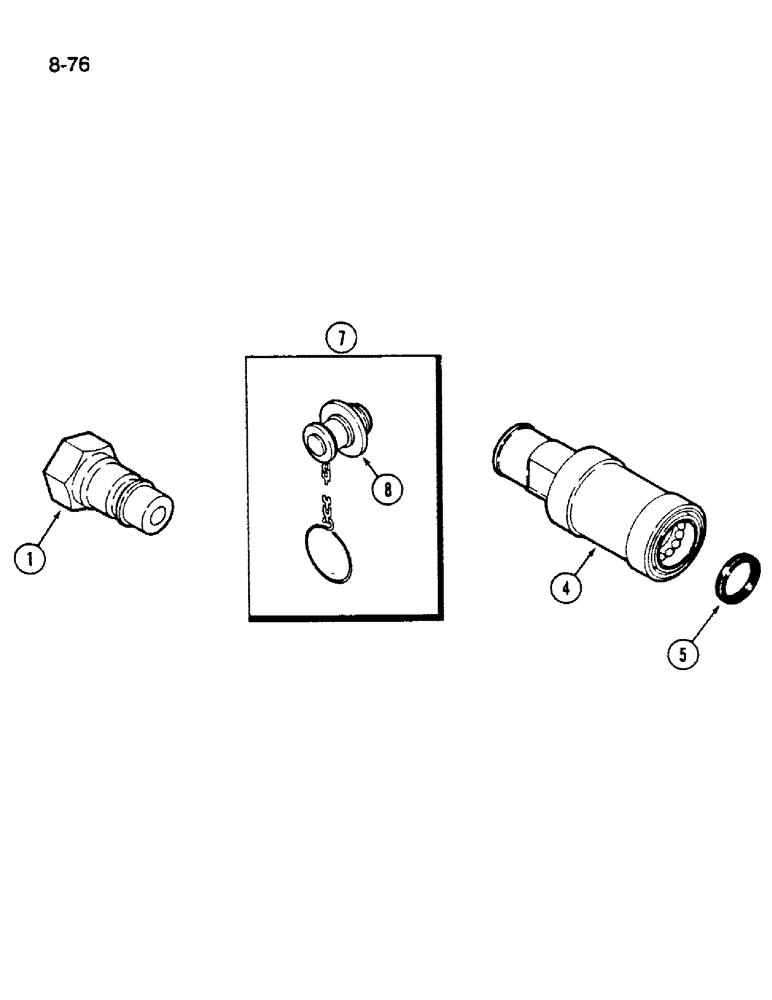

Запчасти Case IH 1620 (8-076) - SELF-SEALING COUPLINGS (07) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY, 7/8 NF, Self-Sealing, Male

1шт.

4

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self-sealing female, 7/8-14 thread, Includes: Ref. 5

1шт.

5

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing

1шт.

7

401757R11

PLUG

ASSEMBLY - coupling dust, Includes: Ref. 8

1шт.

8

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- coupling plug

1шт.
