(9-062) - TORQUE SENSING SPRING, COMPRESSOR TOOL

Запчасти Case IH 1620 (9-062) - TORQUE SENSING SPRING, COMPRESSOR TOOL (14) - ROTOR, CONCANVES & SIEVE

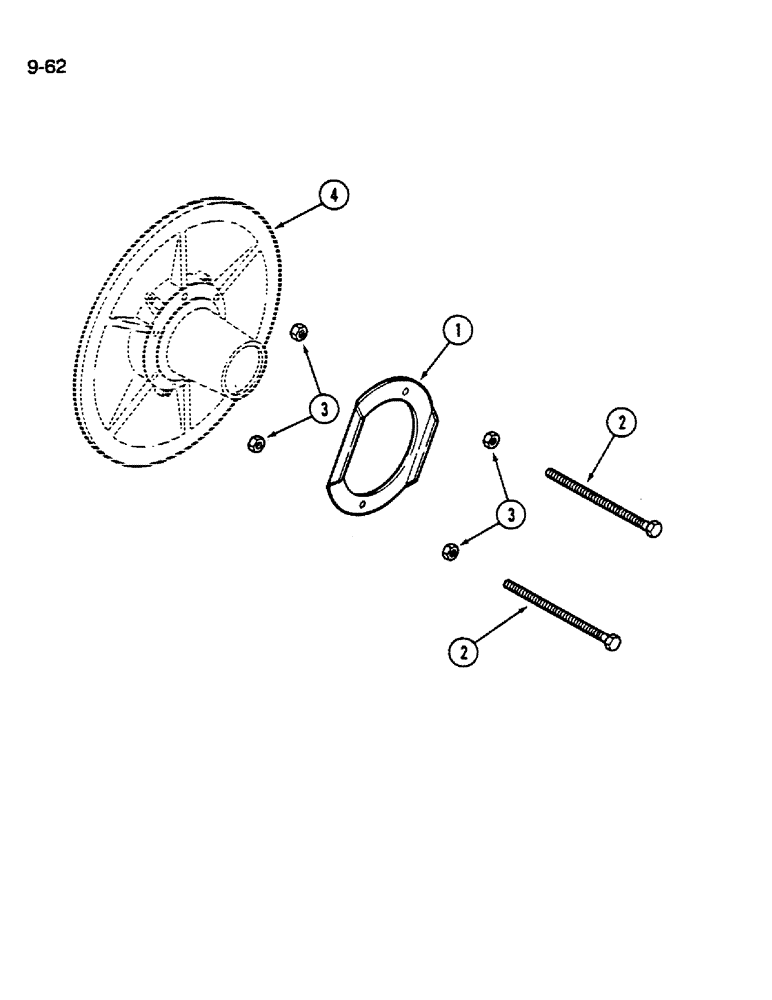

Схема запчастей Case IH 1620 - (9-062) - TORQUE SENSING SPRING, COMPRESSOR TOOL (14) - ROTOR, CONCANVES & SIEVE
2
2
3
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

186364C1

RETAINER

PLATE - spring compressor, Serial Range: -JJC0022109

1шт.

1

1315304C1

PLATE

- spring compressor JJC0022109 to

1шт.

2

1319996C1

ROD,Hex, 3/8" x 10"

BOLT - hex, 3/8 NC x 10 inch

2шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

4

REF

INSTRUCTION

PULLEY - rotor drive, variable half, see Figure 9-060

1шт.
