(9-120) - CLEANING FAN DRIVE (CONTD)

Запчасти Case IH 1620 (9-120) - CLEANING FAN DRIVE (CONTD) (15) - BEATER & CLEANING FANS

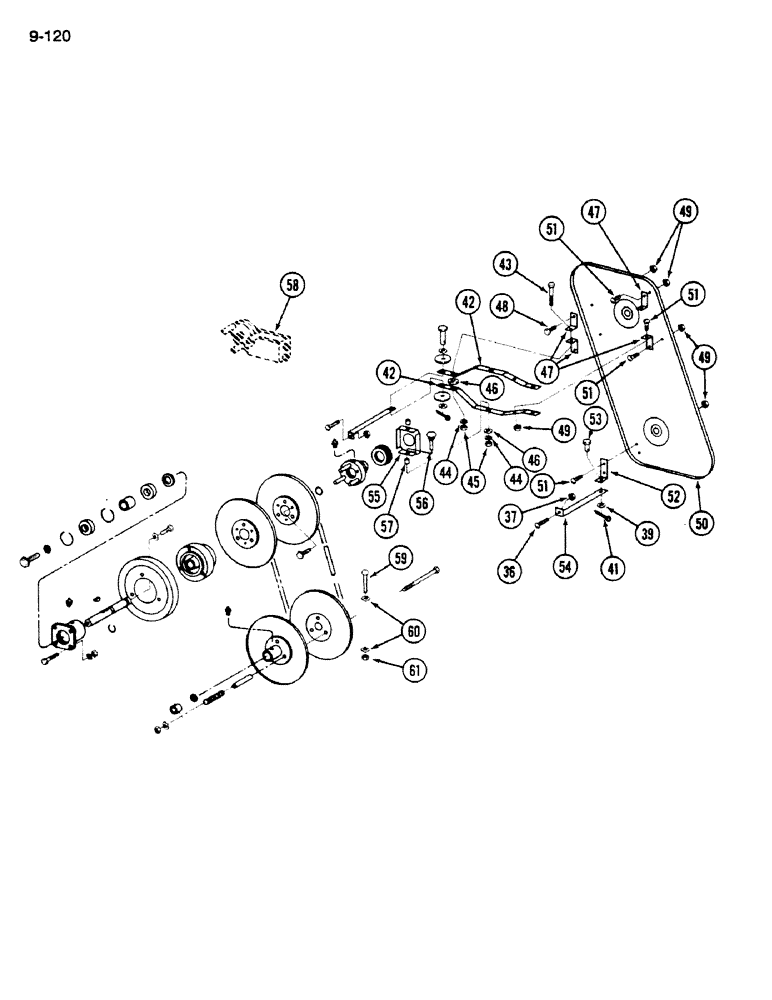

Схема запчастей Case IH 1620 - (9-120) - CLEANING FAN DRIVE (CONTD) (15) - BEATER & CLEANING FANS
52
50
54
45
49
51
49
46
60
47
58
55
49
51
43
53
44
46
42
61
47
42
39
56
36
48
51
59
51
37
44
57
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

194850C2

SUPPORT

- fan control

2шт.

43

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

45

9635082

NUT,5/16" - 18, Gr 5

3шт.

46

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

47

194756C2

ANGLE

- pulley shield

4шт.

48

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

49

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

50

186647C1

SHIELD

- fan drive

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

52

185066C1

ANGLE

- shield, lower

1шт.

53

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch

1шт.

54

194847C1

SUPPORT

- shield

1шт.

55

194852C2

SUPPORT

BRACKET - fan driver

1шт.

56

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

57

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

Bracket 1/2" Tube x 1/2"

2шт.

58

REF

INSTRUCTION

MOTOR - variable speed, see Figure 9-122

1шт.

59

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

1шт.

60

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch

2шт.

61

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.
