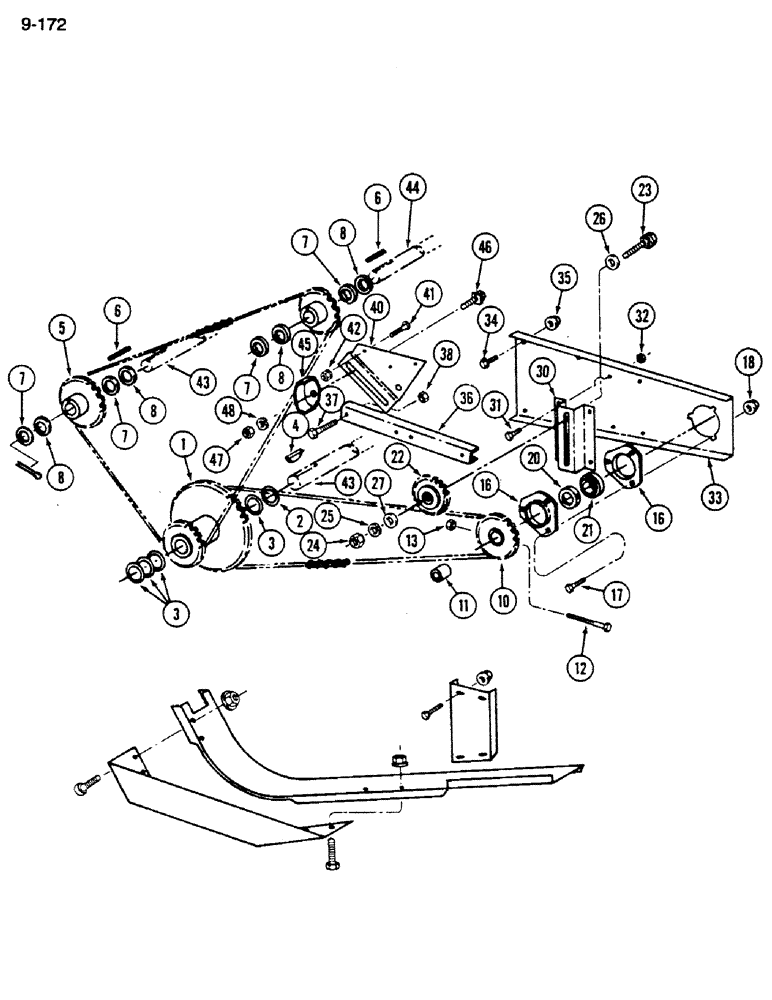

Запчасти Case IH 1620 (9-172) - GRAIN TANK UNLOADER CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

1

192511C2

SPROCKET ASSY.

SPROCKET - driven, 43 and 57 teeth

1шт.

2

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

1шт.

3

162679C1

WASHER

WASHER - flat, 1-13/32 x 2-1/4 x 1/16 inch

4шт.

4

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

- driven, front, 43 teeth

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

20704R1

WASHER

- flat, 1-5/16 x 1-1/2 x 7/64 inch

8шт.

8

591715R1

WASHER

- flat, 1-5/16 x 1-1/2 x 3/64 inch

4шт.

10

1321169C92

DRIVE SPROCKET

SPROCKET ASSEMBLY - drive, 27 teeth, Includes: Ref. 11

1шт.

11

574294R1

BUSHING

sprocket

1шт.

12

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SHEAR BOLT - hex, 5/16 NC x 2-3/4 inch, Grade 8

1шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

16

571425R1

FLANGED BEARING

- bearing

2шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

3шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

20

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, sprocket

1шт.

21

557115R11

COLLAR

COLLAR ASSEMBLY - locking

1шт.

22

565442R91

SPROCKET

- tightener, 17 teeth

1шт.

23

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

1шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

- flat, 17/32 square center x 1-1/4 x 7/64 inch

1шт.

27

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 9/64 inch

1шт.

30

192901C1

SUPPORT

BRACKET - support, sprocket

1шт.

31

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

33

192899C2

SUPPORT

- outer, jackshaft

1шт.

34

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

3шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

36

1319469C1

CHANNEL

- support

1шт.

37

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

40

193779C1

SUPPORT

PLATE - support

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

43

REF

INSTRUCTION

SHAFT - auger

2шт.

44

REF

INSTRUCTION

SHAFT - auger, grain tank

1шт.

45

936878R1

BLOCK

- tightener

1шт.

46

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

47

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

48

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
