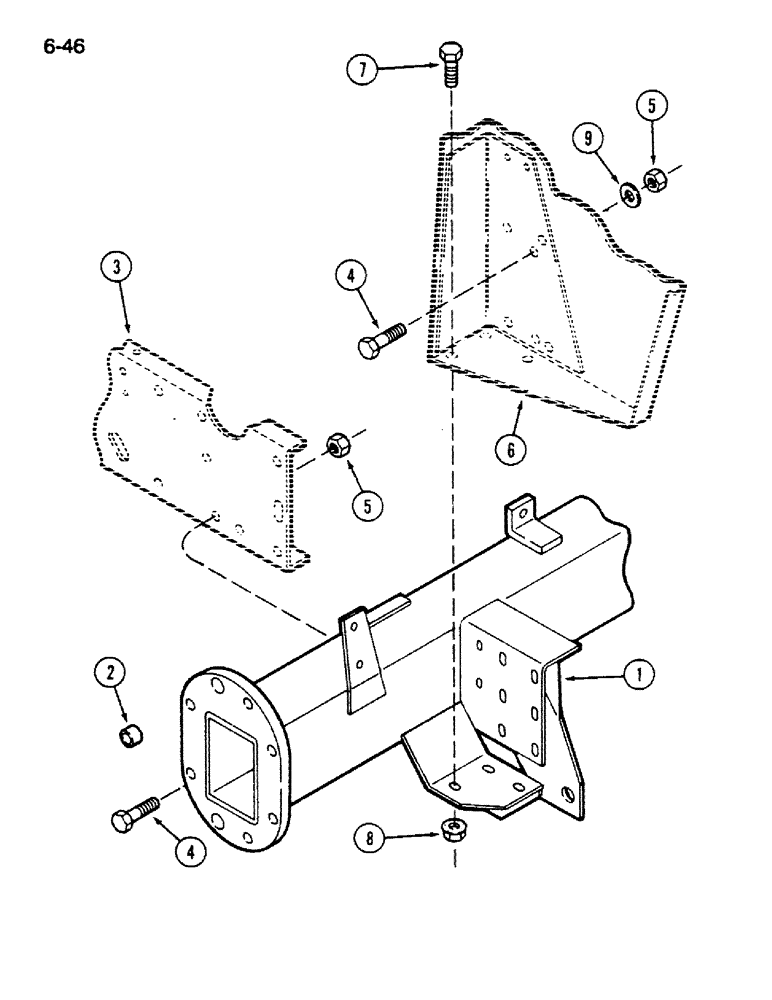

Запчасти Case IH 1620 (6-046) - DRIVE AXLE (03) - POWER TRAIN

1

1315367C4

AXLE

ASSEMBLY - drive, main

1шт.

2

1315371C1

BUSHING

DOWEL - end plate

4шт.

3

REF

INSTRUCTION

SUPPORT - separator side, right, see Figure 9-264

1шт.

4

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

18шт.

5

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, 5/8 inch NC, Grade 8

18шт.

6

REF

INSTRUCTION

POST - separator side, right, see Figure 9-264

1шт.

7

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

6шт.

8

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC, Grade 8

6шт.

9

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

8шт.
