(8-44) - REEL DRIVE PUMP ASSEMBLY

Запчасти Case IH 1620 (8-44) - REEL DRIVE PUMP ASSEMBLY (07) - HYDRAULICS

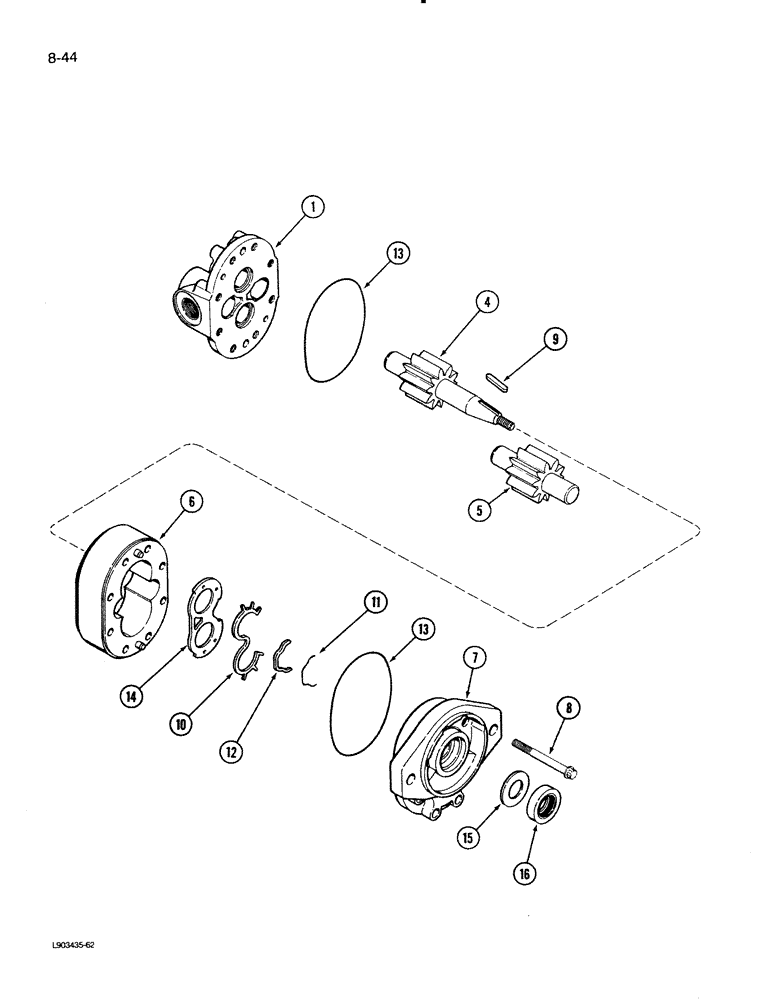

Схема запчастей Case IH 1620 - (8-44) - REEL DRIVE PUMP ASSEMBLY (07) - HYDRAULICS
13
14
13
8
4
12
15
11
7
16
6
10
5
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1341921C1

PUMP

ASSEMBLY - reel drive, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

8

166-34

12 PT SCREW,Flg, 5/16" - 18 x 3", Gr 8

BOLT - Ferry head, 5/16 NC x 3 inch, grade 8

8шт.

9

NSS

NOT SOLD SEPARAT

KEY - pump shaft

1шт.

1272638C2

SEAL KIT

SERVICE KIT - pump, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.
