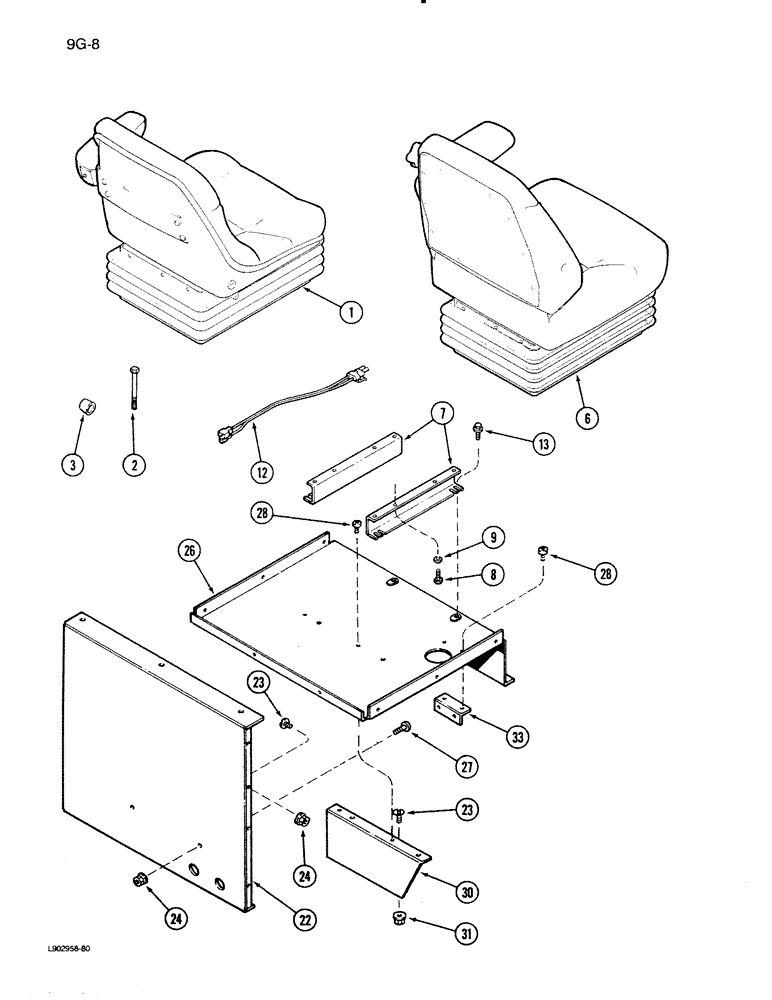

Запчасти Case IH 1620 (9G-08) - OPERATORS SEAT AND SUPPORTS (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, mechanical suspension (See figure 9G-12)

1шт.

2

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

- hex, 5/16 NC x 5 inch

4шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

6

REF

INSTRUCTION

SEAT ASSEMBLY - operators, air suspension (See figure 9G-14)

1шт.

7

1979726C3

SUPPORT

BRACKET - seat supporting

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

12

1983414C1

HARNESS

- seat

1шт.

13

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch

4шт.

20

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

22

91757C2

PANEL ASSY.

PANEL - center rear

1шт.

23

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

9шт.

24

1330064C1

FLANGE NUT

- hex, flange lock, 5/16 inch NC

7шт.

26

1979504C1

SUPPORT ASSY.

SUPPORT - seat

1шт.

27

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW - tap, 1/4-14 x 3/4 inch

4шт.

28

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted

10шт.

30

91695C1

CHANNEL

ASSEMBLY - center

1шт.

31

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

33

91703C2

BRACKET

ANGLE - reservoir bracket

1шт.
