(9H-10) - SEPARATOR HOOD

Запчасти Case IH 1620 (9H-10) - SEPARATOR HOOD (12) - CHASSIS

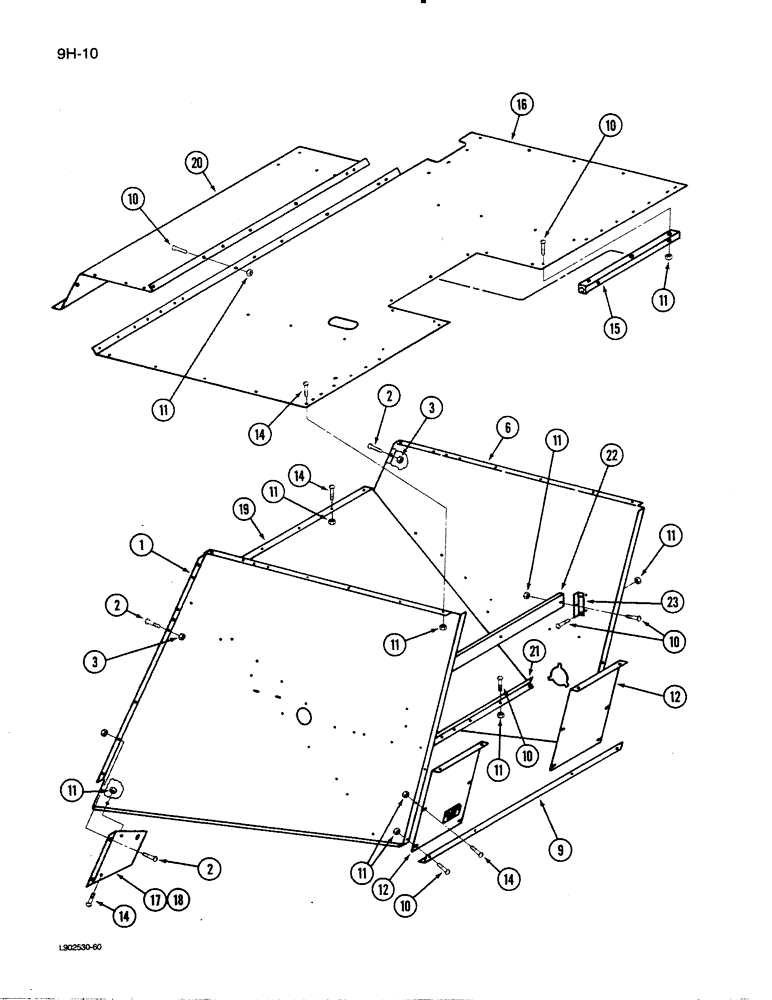

Схема запчастей Case IH 1620 - (9H-10) - SEPARATOR HOOD (12) - CHASSIS
16
2
10
11
11
11
11
18
10
20
22
11
14
2
12
11
14
15
3
11
10
11
17
19
9
23
6
1
2
11
14
3
10
14
21
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

186278C3

SHEET

PANEL - side, left

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

20шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

26шт.

6

1303353C94

SHEET

PANEL ASSEMBLY - side, right (With decal)

1шт.

9

194877C1

ANGLE

RAIL - rear

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

40шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

100шт.

12

1303107C91

SUPPORT

PANEL ASSEMBLY - hood, rear (With decal)

2шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

40шт.

15

186971C1

ANGLE

SUPPORT - deck

1шт.

16

1330024C1

SUPPORT

PANEL - deck

1шт.

17

186276C1

SUPPORT

PLATE - hood, left

1шт.

18

186277C2

PLATE

- hood, right

1шт.

19

194880C2

DEFLECTOR

- discharge

1шт.

20

1346972C1

EXTENSION

- engine deck

1шт.

21

194887C1

ANGLE

- deflector

1шт.

22

183033C2

BAR

CHANNEL - ladder

1шт.

23

194311C1

ANGLE

- channel

2шт.
