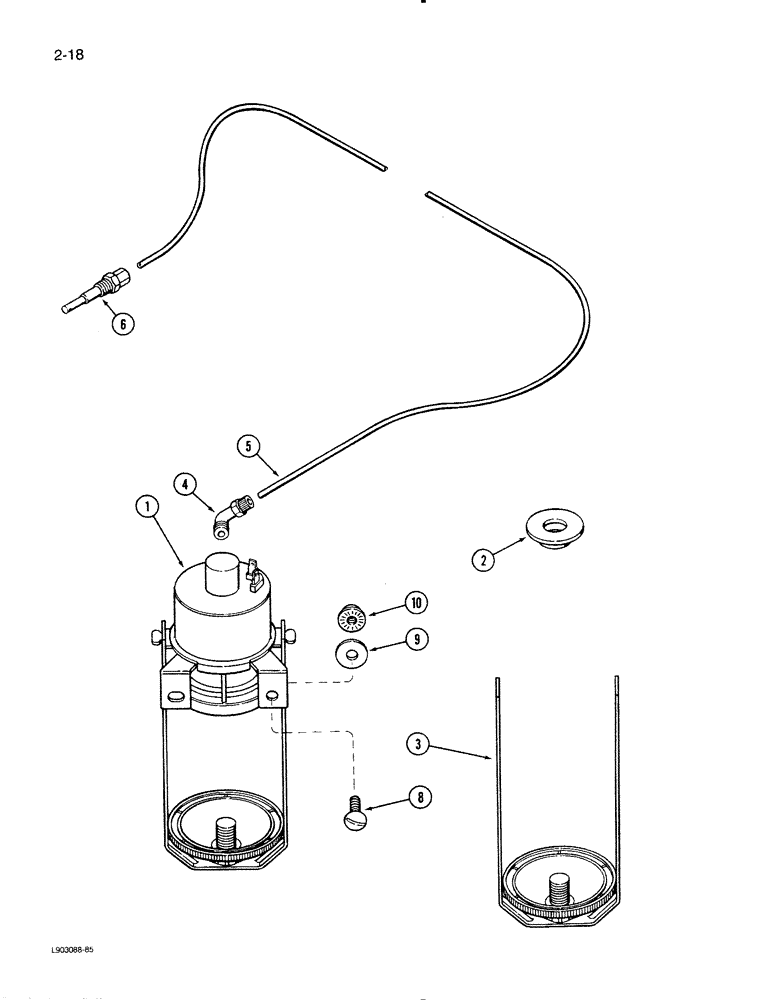

Запчасти Case IH 1620 (2-18) - ETHER STARTING (01) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 and 3

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

3

121851C1

RETAINER

BAIL - injector

1шт.

4

289970C91

FITTING

ELBOW - 90 degree, 1/8-27

2шт.

5

NSS

NOT SOLD SEPARAT

TUBE - solenoid to manifold, 72 inch long (Order 1954063C1, Serial Range: cut-length)

1шт.

6

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

8

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

9

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.
