(9F-06) - STRAW SPREADER PULLEY SHIELD AND BELT GUIDE, RICE COMBINE

Запчасти Case IH 1620 (9F-06) - STRAW SPREADER PULLEY SHIELD AND BELT GUIDE, RICE COMBINE (19) - STRAW SPREADER & CHOPPER

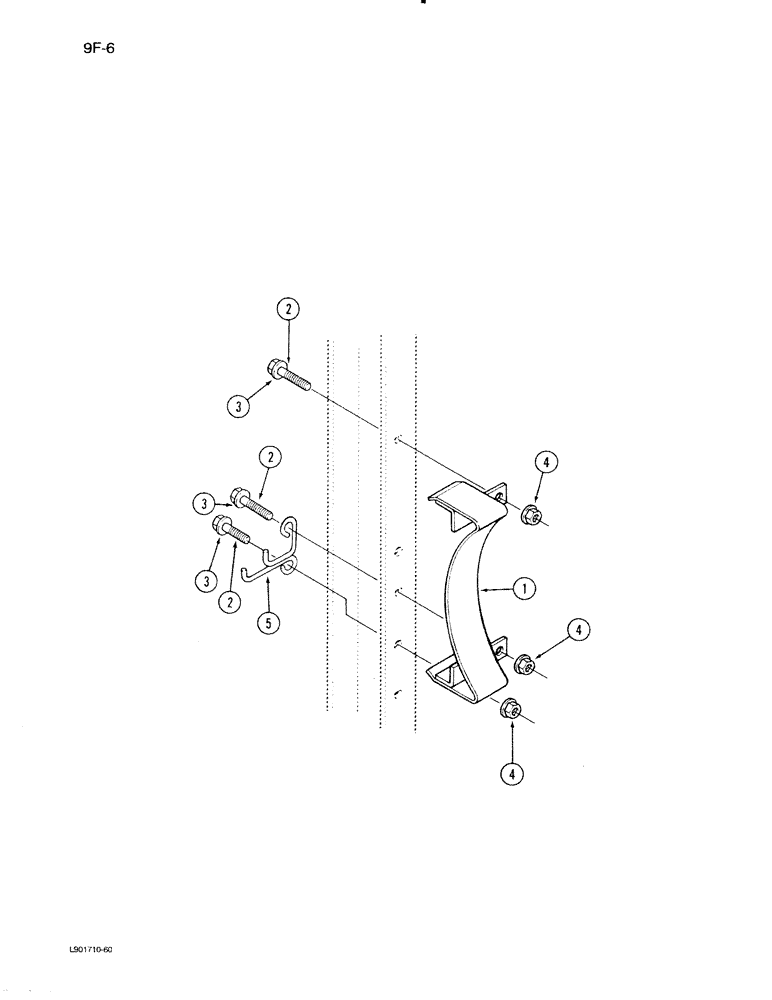

Схема запчастей Case IH 1620 - (9F-06) - STRAW SPREADER PULLEY SHIELD AND BELT GUIDE, RICE COMBINE (19) - STRAW SPREADER & CHOPPER
4
1
5
3
2
3
3
4
2
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324423C1

GUARD

SHIELD - pulley

1шт.

2

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted, 3/8 NC x 1-1/4 inch

3шт.

3

28588R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

3шт.

5

1324419C1

GUIDE

- belt

1шт.
