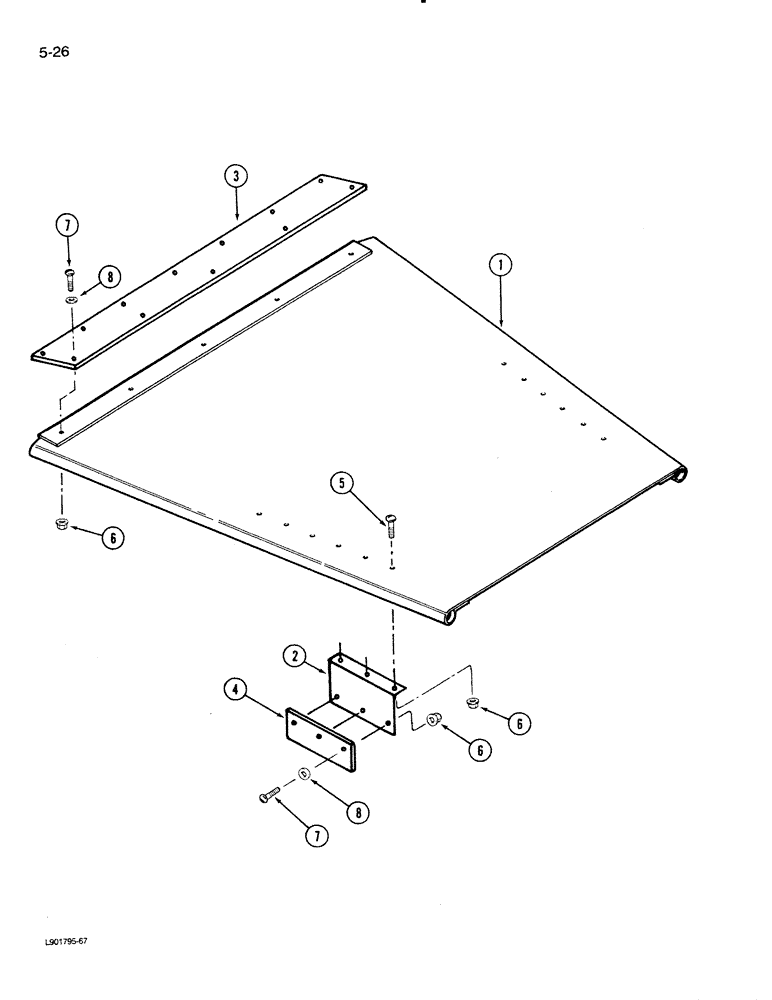

Запчасти Case IH 1620 (5-26) - STEERING AXLE SHIELD (04) - STEERING

1

183306C3

SHIELD

- steering axle

1шт.

2

183308C1

SUPPORT

- axle shield

2шт.

3

183311C1

STRIP

- shield support

1шт.

4

183309C2

STRIP

- shield pivot

2шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

6

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

17шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

11шт.

8

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

11шт.
