(5-44) - SELECTOR VALVE, POWER GUIDE AXLE

Запчасти Case IH 1620 (5-44) - SELECTOR VALVE, POWER GUIDE AXLE (04) - STEERING

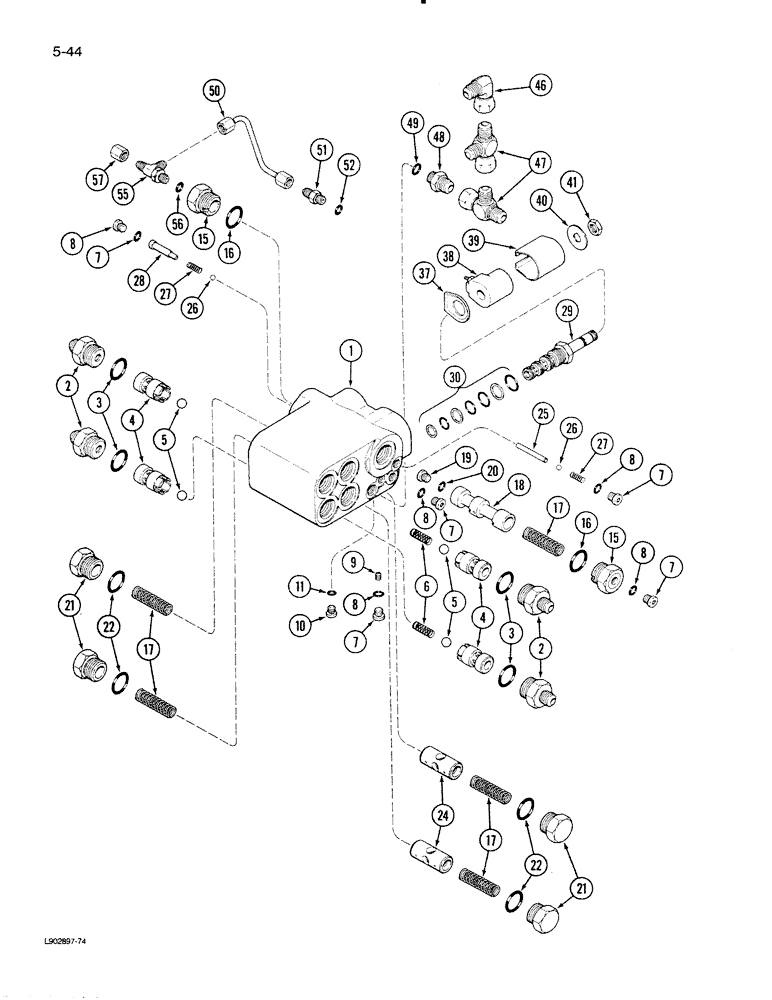

Схема запчастей Case IH 1620 - (5-44) - SELECTOR VALVE, POWER GUIDE AXLE (04) - STEERING
4
7
6
3
30
7
40
37
27
2
22
8
17
10
8
39
4
8
41
29
8
49
26
15
52
51
16
17
47
19
7
24
15
5
9
11
7
38
26
25
8
7
21
21
1
55
20
22
28
57
3
18
17
56
48
5
16
46
2
50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1978000C1

VALVE

ASSEMBLY - selector, steering, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch

4шт.

3

NSS

NOT SOLD SEPARAT

O-RING - connector

4шт.

4

NSS

NOT SOLD SEPARAT

SEAT - check ball

4шт.

5

NSS

NOT SOLD SEPARAT

BALL - check, 9/16 inch diameter

4шт.

6

NSS

NOT SOLD SEPARAT

SPRING - check, reverse

2шт.

7

1288962C1

PLUG

- hex socket

6шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

6шт.

9

NSS

NOT SOLD SEPARAT

PLUG - orifice,1/16-27 PT

1шт.

10

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- hex

1шт.

11

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

15

1970176C1

PLUG

- hex special

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool, flow divider and selector

5шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - selector

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

21

1979118C1

PLUG

- hex, flow divider spool

4шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

4шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - flow divider

2шт.

25

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

26

211-208

BALL,5/16" Dia

- check, 5/16 inch diameter

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING - shuttle, low priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

29

187849C1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, four way, Includes: Ref. 30

1шт.

30

187850C1

SEAL KIT

SERVICE KIT - washer and o-ring

1шт.

1288956C2

SOLENOID

KIT - coil, Includes: Ref. 37 - 41

1шт.

37

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

38

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

39

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

40

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

41

NSS

NOT SOLD SEPARAT

NUT - hex, thin

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch

1шт.

47

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

48

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - reducer straight, 3/4-16 to 9/16-18 inch

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.

50

1970140C1

TUBE,4.78 mm ID

ASSEMBLY - pressure, charge

1шт.

51

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 inch

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

55

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

- adjustable, 7/16-20 inch

1шт.

56

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

57

218-752

CAP,37 Degree, 7/16"-20

Hex 37º, 7/16"-20

1шт.
