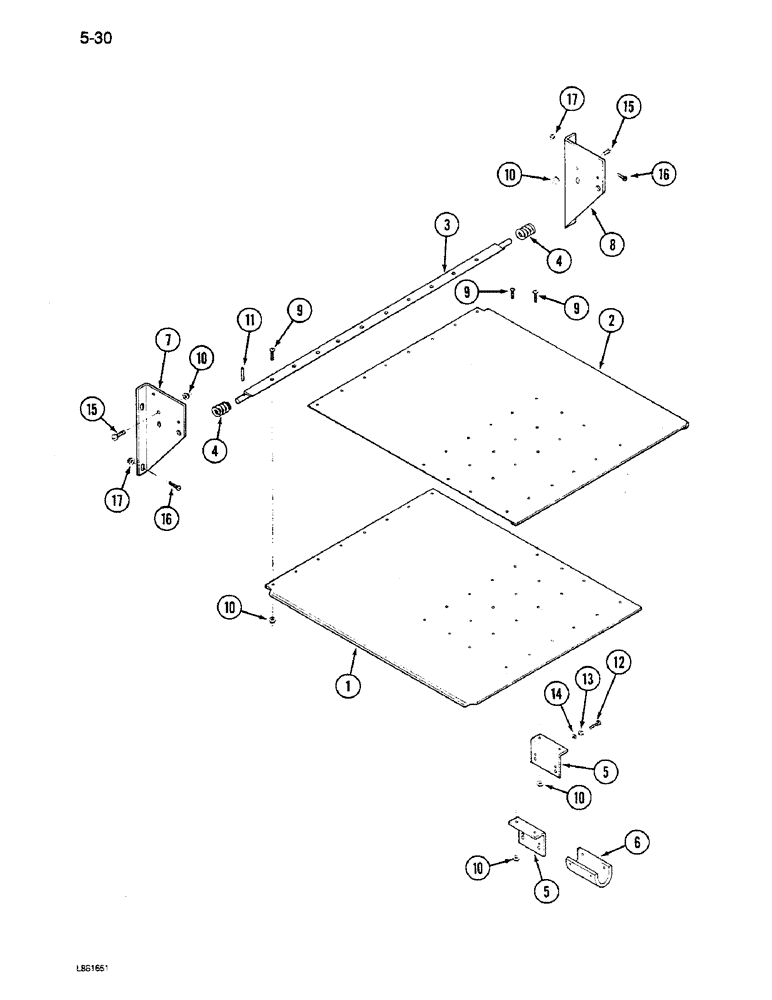

Запчасти Case IH 1640 (5-30) - STEERING AXLE SHIELD, STATIONARY (04) - STEERING

1

195437C2

SHIELD

- axle, left

1шт.

2

195438C2

SHIELD

- axle, right

1шт.

3

195450C2

SUPPORT ASSY.

SUPPORT - axle shield

1шт.

4

203942C1

SPRING

- shield pivot

1шт.

5

183093C1

BRACKET

ANGLE - shield support

2шт.

6

183094C1

CUSHION

STRIP - shield support

1шт.

7

186912C1

SUPPORT

- separator hood, left

1шт.

8

186913C1

SUPPORT

- separator hood, right

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

20шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

24шт.

11

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

14

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

4шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.
