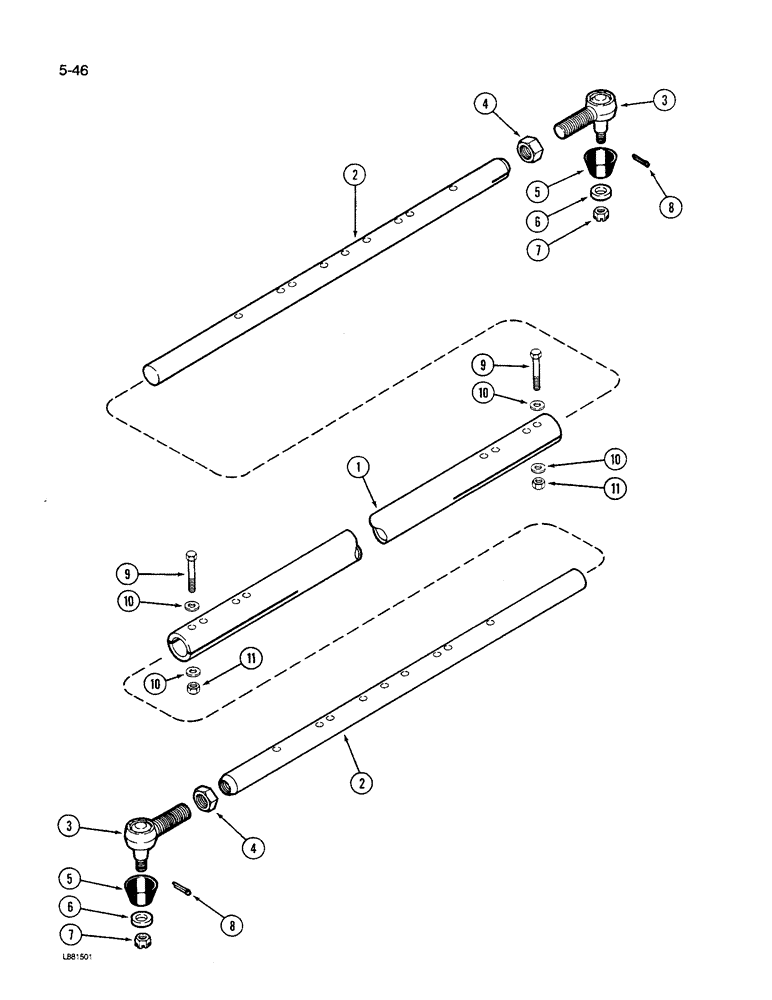

Запчасти Case IH 1640 (5-46) - STEERING TIE ROD, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

1324459C1

TUBE,2" OD, 83" Length

- tie rod, outer

1шт.

2

1324460C1

TUBE,33" Length

- tie rod, inner

2шт.

3

1310570C1

END

- tie rod

2шт.

4

1310571C1

JAM NUT

- hex jam special, 1 inch

2шт.

5

1310572C1

RUBBER SEAL

- tie rod end

2шт.

6

25548R1

WASHER

- flat, 13/16 x 1-1/2 x 7/32 inch

2шт.

7

125158

SLOTTED NUT,5/8"-11, G5

NUT - hex slotted, 5/8 inch NF

2шт.

8

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

9

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, Grade 8

4шт.

10

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

8шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.
