(5-52) - SELECTOR VALVE, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001

Запчасти Case IH 1640 (5-52) - SELECTOR VALVE, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

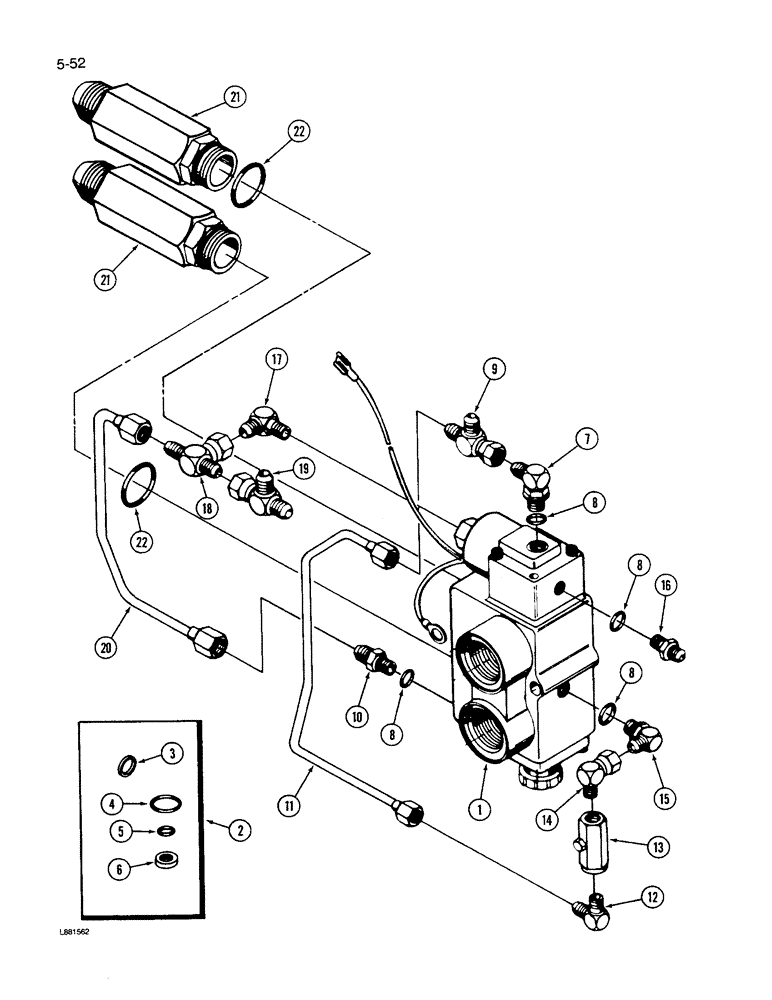

Схема запчастей Case IH 1640 - (5-52) - SELECTOR VALVE, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING
2
17
1
22
8
8
5
11
22
12
13
8
15
7
4
6
21
9
16
3
21
18
19
14
20
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1315489C91

VALVE

ASSEMBLY - selector Includes: Ref. 1 - 22

1шт.

1

1324482C91

VALVE

BODY - selector Includes: Ref. 2 - 7

1шт.

2

1324483C1

SEAL KIT

- seal

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - Order kit 1324483C1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - Order kit 1324483C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - Order kit 1324483C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - Order kit 1324483C1

1шт.

7

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

- 90 degree adjustable, 7/16-20 thread

1шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

4шт.

9

9410330

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run

- 90 degree swivel, 1/4 inch tube

1шт.

10

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short tube, 9/16-18 x 7/16-20 thread

1шт.

11

1324484C1

TUBE

- charge pressure

1шт.

12

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

- 90 degree, 1/8 PT x 7/16-20 thread

1шт.

13

1324485C1

VALVE

- check

1шт.

14

1324486C1

ELBOW

- 90 degree, 9/16-18 x 1/4 PT

1шт.

15

1324487C1

ELBOW

- 90 degree, 9/16-18 x 7/16-20 thread

1шт.

16

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - short tube, 7/16-20 thread

1шт.

17

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, 9/16-18 x 1/8 PT

1шт.

18

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

- tube swivel, 3/8 inch tube

1шт.

19

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 90 degree tube swivel, 3/8 inch tube

1шт.

20

1324488C1

TUBE

- housing drain

1шт.

21

1310542C1

VALVE

- flow limiter

2шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 OD tube

2шт.

25

1301426C1

SUPPORT

- selector valve mounting

1шт.

26

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

27

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.
