(5-58) - PLANETARY GEAR HOUSING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001

Запчасти Case IH 1640 (5-58) - PLANETARY GEAR HOUSING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

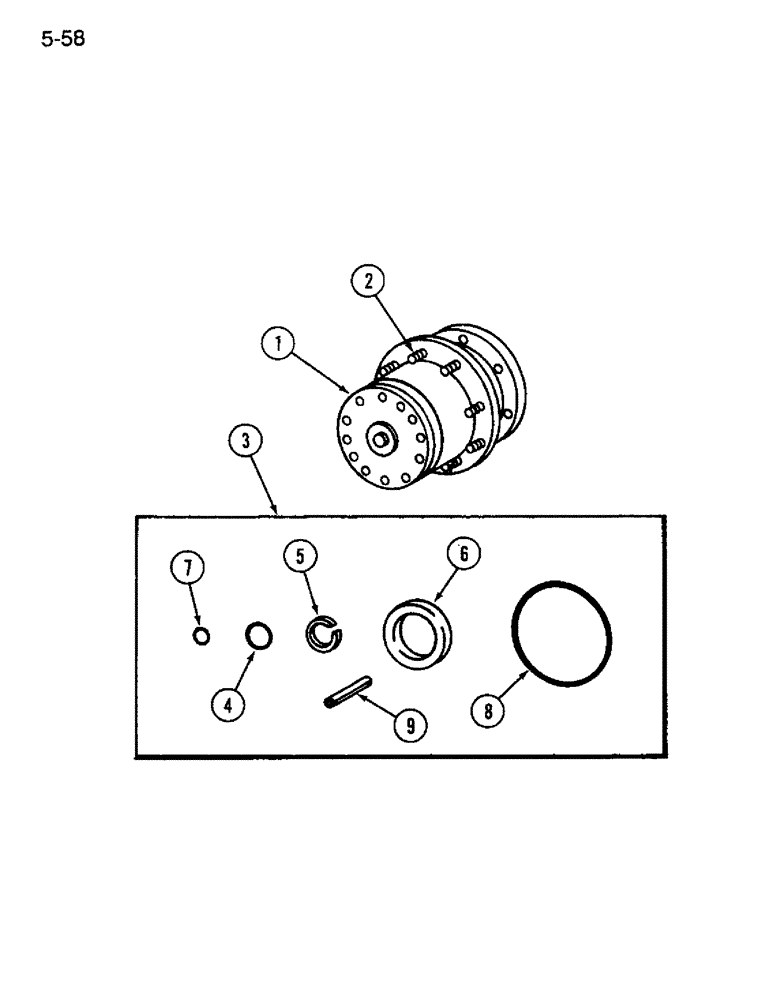

Схема запчастей Case IH 1640 - (5-58) - PLANETARY GEAR HOUSING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING
3
4
1
9
7
8
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324465C91

HOUSING

- planetary gear Includes: Ref. 2 - 9

2шт.

2

1310563C1

STUD,5/8" - 18 x 2.15"

- flanged, wheel mounting

18шт.

3

1319387C1

SEAL KIT

REPAIR KIT - planetary gear housing Includes: Ref. 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING - cover cap

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - spindle

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - disconnector rod

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - ring gear

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.
