(5-72) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER

Запчасти Case IH 1640 (5-72) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER (04) - STEERING

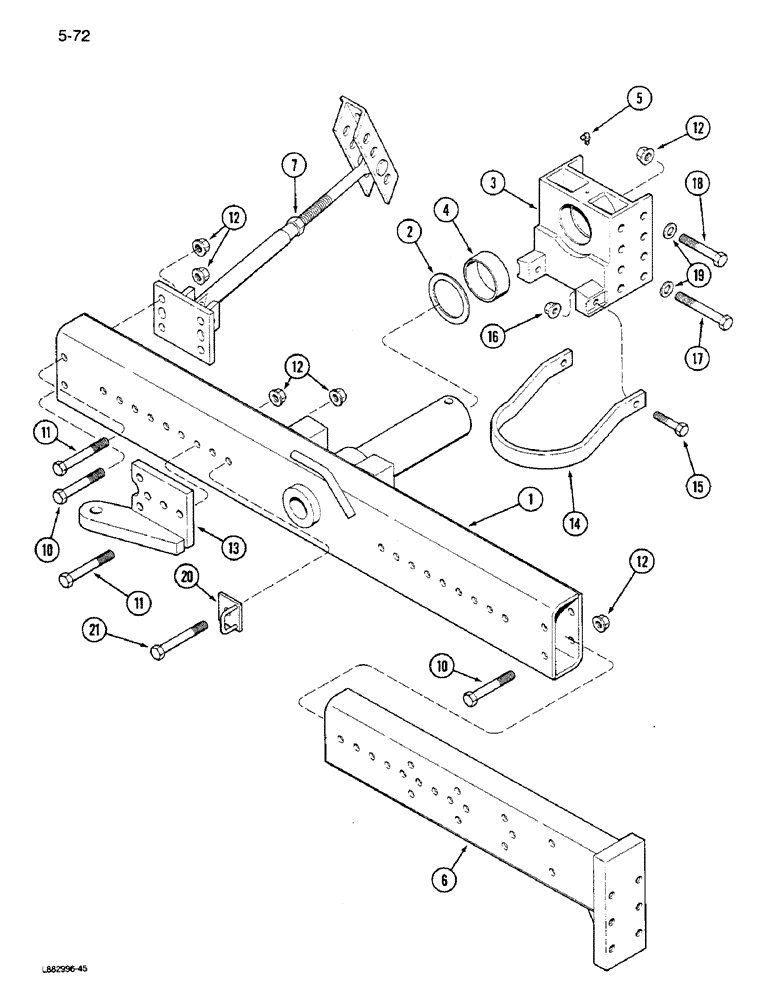

Схема запчастей Case IH 1640 - (5-72) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER (04) - STEERING
17
19
6
10
5
1
12
11
14
20
13
7
12
16
12
11
15
4
12
21
10
18
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1968991C1

AXLE

- adjustable, 108 to 144 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- thrust, pivot shaft

4шт.

3

186599C93

SUPPORT

ASSEMBLY - pivot, axle Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot, axle

2шт.

5

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

6

1968992C1

AXLE

EXTENSION - axle

2шт.

7

REF

INSTRUCTION

SUPPORT ASSEMBLY - stay, axle (See figure 5-70)

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

10шт.

11

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, Grade 8

4шт.

12

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

23шт.

13

1968993C1

SUPPORT

- steering bracket

1шт.

14

1979114C1

STRAP

- tow

1шт.

15

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC

2шт.

17

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, Grade 8

2шт.

18

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

6шт.

19

25712R1

WASHER

- flat, hardened

8шт.

20

1979120C1

GUIDE

BRACKET - hose, cylinder

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
