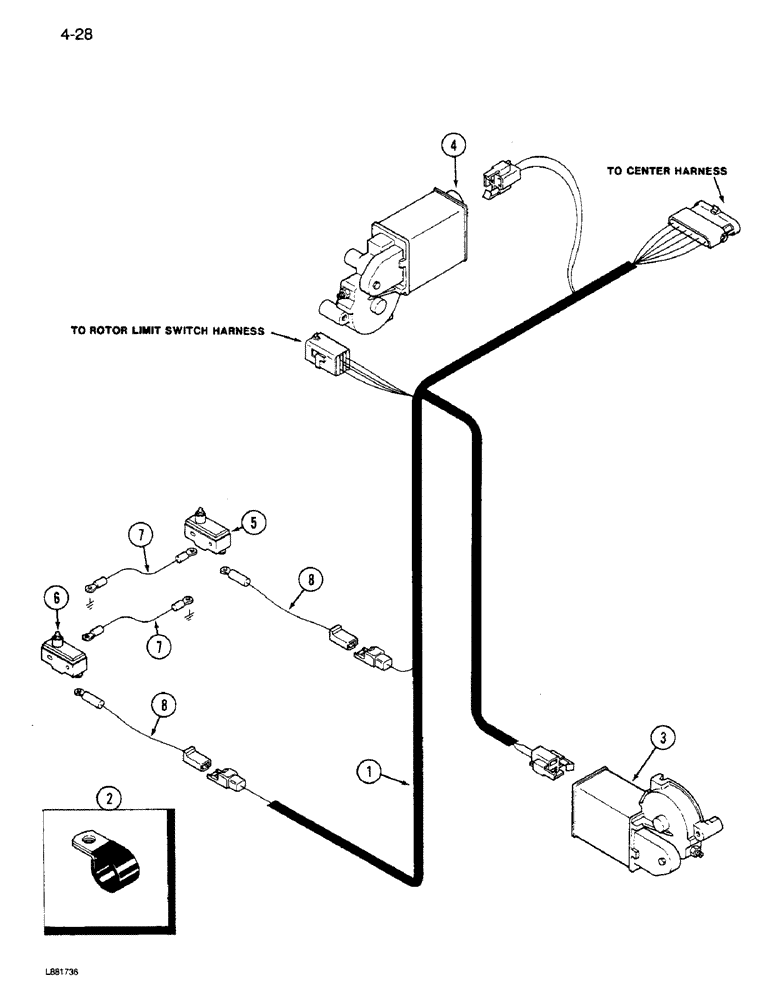

Запчасти Case IH 1640 (4-28) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

1983397C1

HARNESS

ASSEMBLY - fan and rotor speed (Used with micro switch cable) (Shown) ( replaced 245230C1 )

1шт.

1

1983397C1

HARNESS

- fan and rotor speed

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining (Replaces 84183C1)

1шт.

2

84183C1

CLAMP

CLIP - harness

1шт.

3

REF

INSTRUCTION

MOTOR - fan speed (See Figure 9C-14)

1шт.

4

REF

INSTRUCTION

MOTOR - rotor speed (See Figure 9B-12)

1шт.

5

574649R91

SWITCH

- elevator and auger alarm, See Figure 9B-44

2шт.

If equipped. Used with shaft speed monitor system.

1шт.

7

175008C1

CABLE ASSY.

CABLE - micro switch ground

2шт.

If equipped. Used with shaft speed monitor system.

1шт.

8

187736C1

CABLE

- micro switch connection

2шт.

If equipped. Used with shaft speed monitor system.

1шт.
