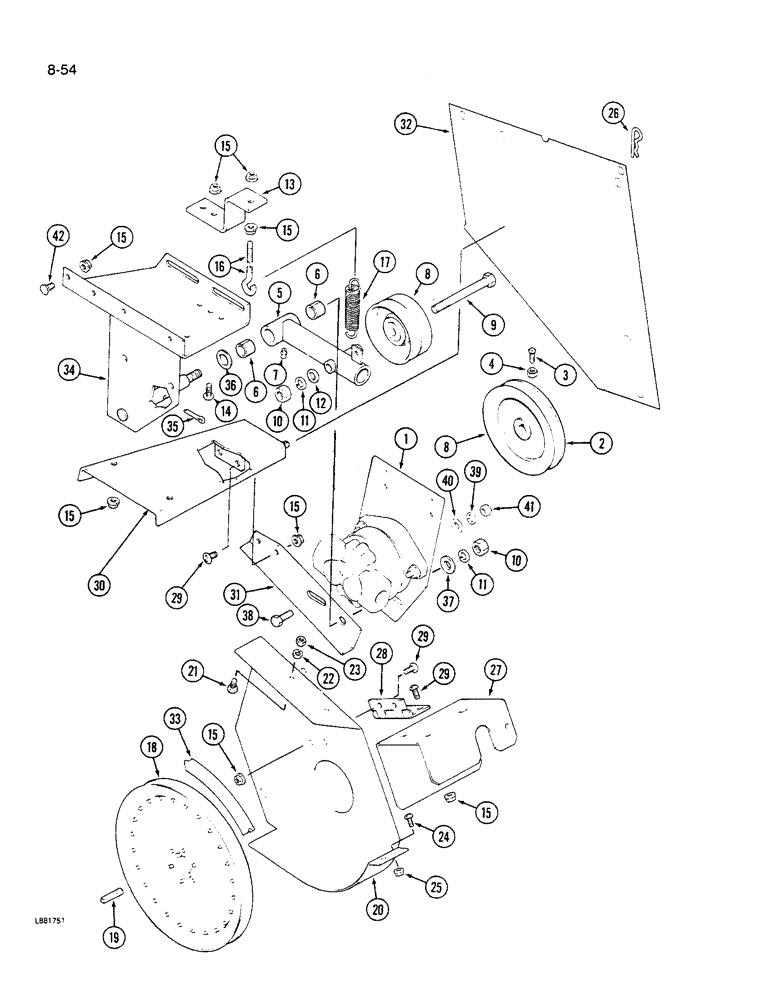

Запчасти Case IH 1640 (8-54) - REEL PUMP DRIVE, DRIVE AND CONNECTIONS (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-50)

1шт.

2

1330177C1

PULLEY

- pump driven (Replaces 193252C1)

1шт.

3

84983

SET SCREW,3/8" x 1"

SCREW - set, square head cup point, 3/8 NC x 1 inch

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

1321612C92

LEVER ASSY.

ARM - pump tightener (47 inch feeder), Includes: Ref. 6

1шт.

5

1979598C1

LEVER

ARM pump tightener (54-1/2 inch feeder), Includes: Ref. 6

1шт.

6

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 PT x 17/32 inch

1шт.

8

1321652C1

PULLEY

ASSEMBLY - belt idler, 5 inch O.D. (47 inch feeder)

1шт.

8

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- drive tightener (54-1/2 inch feeder)

1шт.

9

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 x 5 inch (Replaced 413-1080 ) NHE SB 021 90

1шт.

9

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

10

129-107

NUT,5/8"-11, G5

2шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

21471R1

WASHER

- flat, 21/32 x 1 x 7/64 inch

1шт.

13

1321687C1

BRACKET

SUPPORT - spring adjusting bolt

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - hex flange lock, 3/8 NC x 3/4 inch

2шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

14шт.

16

1315487C1

BOLT,3/8" - 16 x 205mm

EYEBOLT - spring tightener

1шт.

17

398763R2

SPRING

- tightener (Replaces 521816R1)

1шт.

18

1330403C1

PULLEY

- feeder jackshaft pump drive (Replaces 1321647C1)

1шт.

P/N 1330403C1 is 344.18 mm O.D., 38.23/38.13 mm shaft diameter, and width of belt groove is 16.510 mm (.650"). P/N 1321647C1 is the same except the width of the belt groove is 22.733 mm (.895").

1шт.

19

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

1шт.

20

1321835C2

GUARD

SHIELD - reel drive pulley

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

26

480523R1

HAIR PIN COTTER

quick attachable

5шт.

27

1321848C3

GUARD

SHIELD - feeder jackshaft, left

1шт.

28

10810R

HINGE

- shield

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

30

1321648C1

SUPPORT

ASSEMBLY - shield lower rear

1шт.

31

1321651C1

SUPPORT

- pivot lower

1шт.

32

1321889C2

SHIELD

SUPPORT - reel pump drive (47 inch feeder)

1шт.

32

1322444C1

SUPPORT

- reel pump drive (54-1/2 inch feeder)

1шт.

33

1979606C1

V-BELT,16.00 mm W x 1480.85 mm L

Reel drive (47 inch feeder) (Replaces 1321564C1) 16.00 mm W x 1480.85 mm L

1шт.

33

1330311C1

V-BELT,1828.65 mm L

Reel Drive, 54-1/2 Inch Feeder, Replaces 1321565C1 1828.65 mm L

1шт.

P/N 1330311C1 is 72" in length and .63" wide. P/N 1321565C1 is 78" in length and .88" in width.

1шт.

34

1315494C1

SUPPORT

ASSEMBLY - reel pump

1шт.

35

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

36

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

37

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

38

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

42

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

COLT - round head square neck, 3/8 NC x 3/4 inch

4шт.
