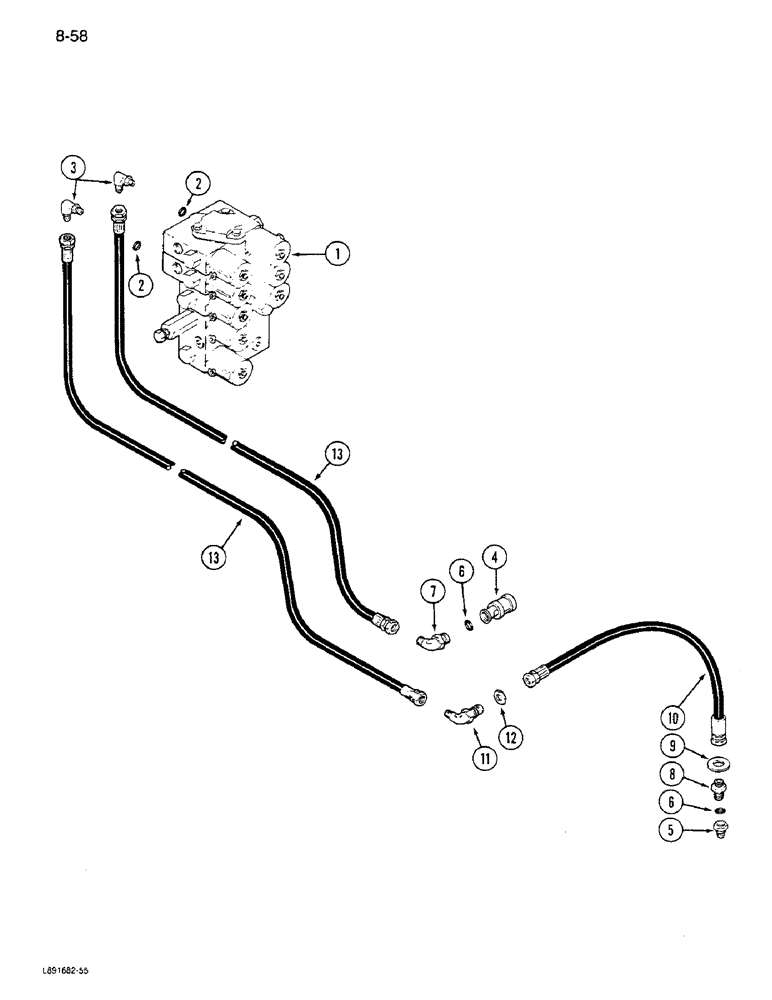

Запчасти Case IH 1640 (8-58) - REEL FORE AND AFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-74)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 x 9/16-18 inch thread

2шт.

4

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female (See Figure 8-84)

1шт.

5

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male (See Figure 8-84)

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D.

2шт.

7

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 x 7/8-14 inch thread

1шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

1шт.

9

1327631C1

WASHER

- red

1шт.

10

1347107C1

HOSE,6.35 mm ID x 6225.00, SAE 100R1 OR 100R1 AT

- reel lift fore and aft (Replaces 1327608C1)

1шт.

11

671943R1

ELBOW

- 90 degree bulkhead, 9/16-18 inch thread

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead union lock, 9/16-18 inch thread

1шт.

13

1321591C1

HOSE

- reel fore and aft, 5/16 ID x 94 inch

2шт.
