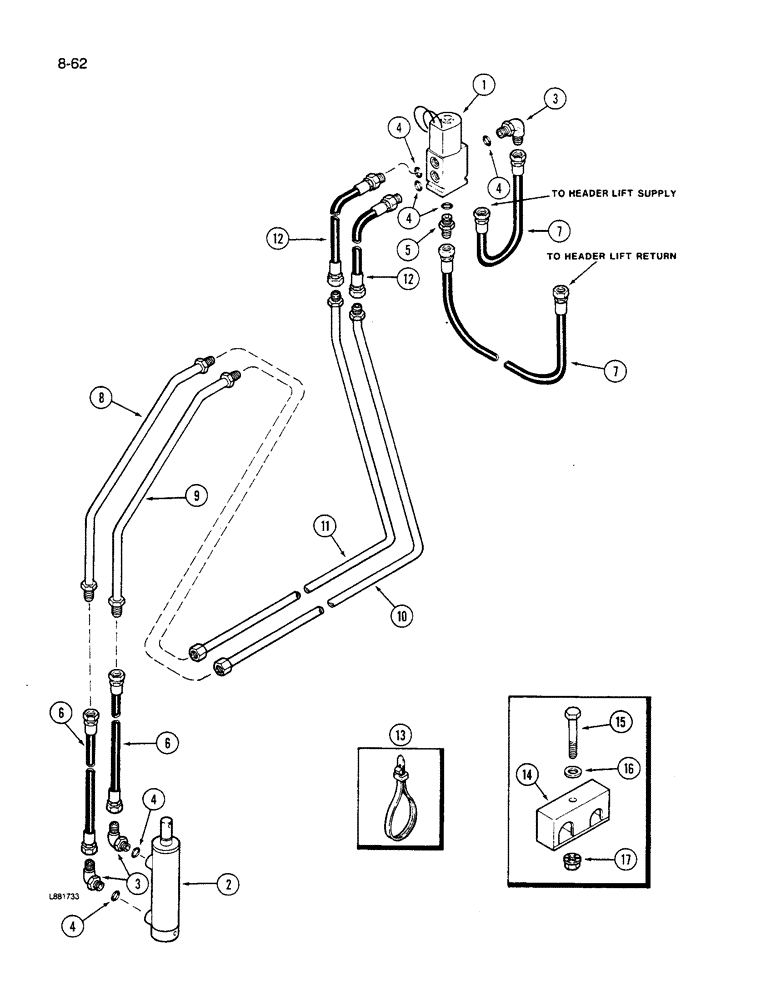

Запчасти Case IH 1640 (8-62) - FEEDER CLUTCH SYSTEM, MODULAR CONTROL (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch (See Figure 8-72)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Figure 8-74)

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustabie, 9/16-18 thread

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 thread

3шт.

6

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder Clutch 0.31" ID x 20.00", SAE 100R1

2шт.

7

632455R91

HOSE

ASSEMBLY - feeder clutch, 5/16 ID x 14 inch

2шт.

8

196793C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

9

196823C2

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

10

196792C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch upper forward

1шт.

11

196748C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch upper rearward

1шт.

12

548745R1

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R1

Feeder Clutch 0.38" ID x 12.00", SAE 100R1

2шт.

13

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

14

183825C1

CLAMP

- feeder clutch tubes

4шт.

15

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

4шт.

16

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

4шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.
