(8-72) - FEEDER AND SEPARATOR CLUTCH VALVE ASSEMBLY, MODULAR CONTROL

Запчасти Case IH 1640 (8-72) - FEEDER AND SEPARATOR CLUTCH VALVE ASSEMBLY, MODULAR CONTROL (07) - HYDRAULICS

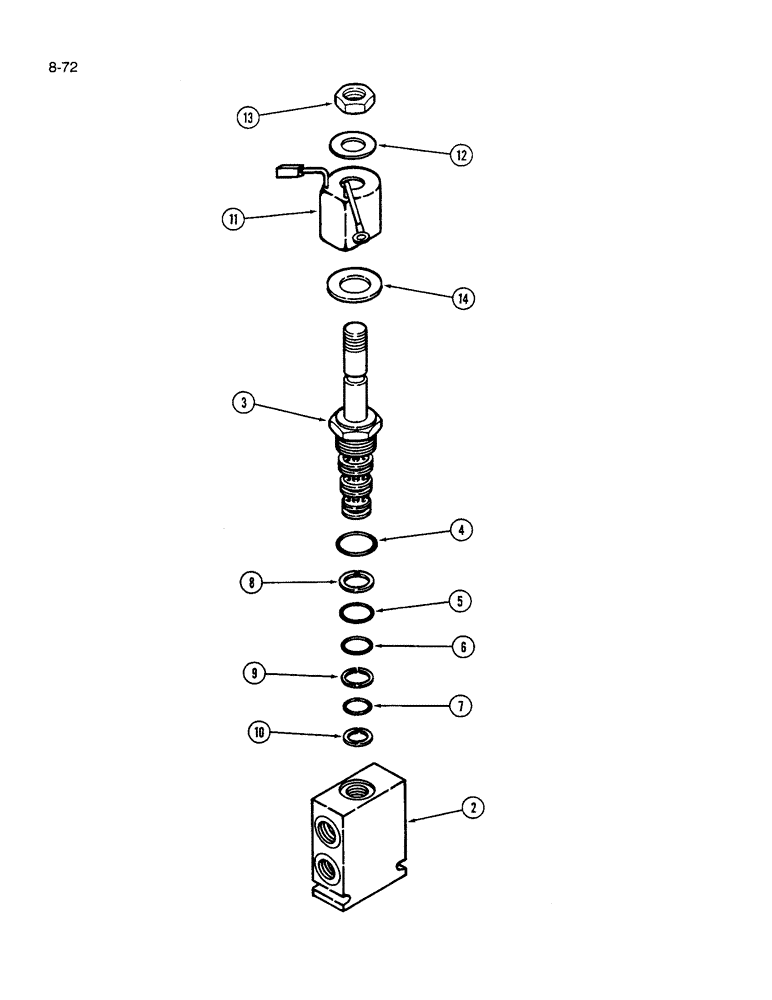

Схема запчастей Case IH 1640 - (8-72) - FEEDER AND SEPARATOR CLUTCH VALVE ASSEMBLY, MODULAR CONTROL (07) - HYDRAULICS
8
13
7
11
9
3
12
4
6
10
5
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

187505C91

VALVE

ASSEMBLY - feeder and separator clutch, Includes: Ref. 2 - 14

1шт.

2

187851C1

BODY

- valve

1шт.

3

187849C1

SOLENOID VALVE

VALVE - four way solenoid, Includes: Ref. 4 - 10 and o-ring and washer kit, P/N 187850C1

1шт.

187850C1

SEAL KIT

KIT - o-ring and washer

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

187852C1

SWITCH

KIT - solenoid coil, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

COIL AND HOUSING ASSEMBLY

1шт.

12

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.
