(9G-38) - CONDENSER COIL AND SUPPORTS

Запчасти Case IH 1640 (9G-38) - CONDENSER COIL AND SUPPORTS (10) - CAB & AIR CONDITIONING

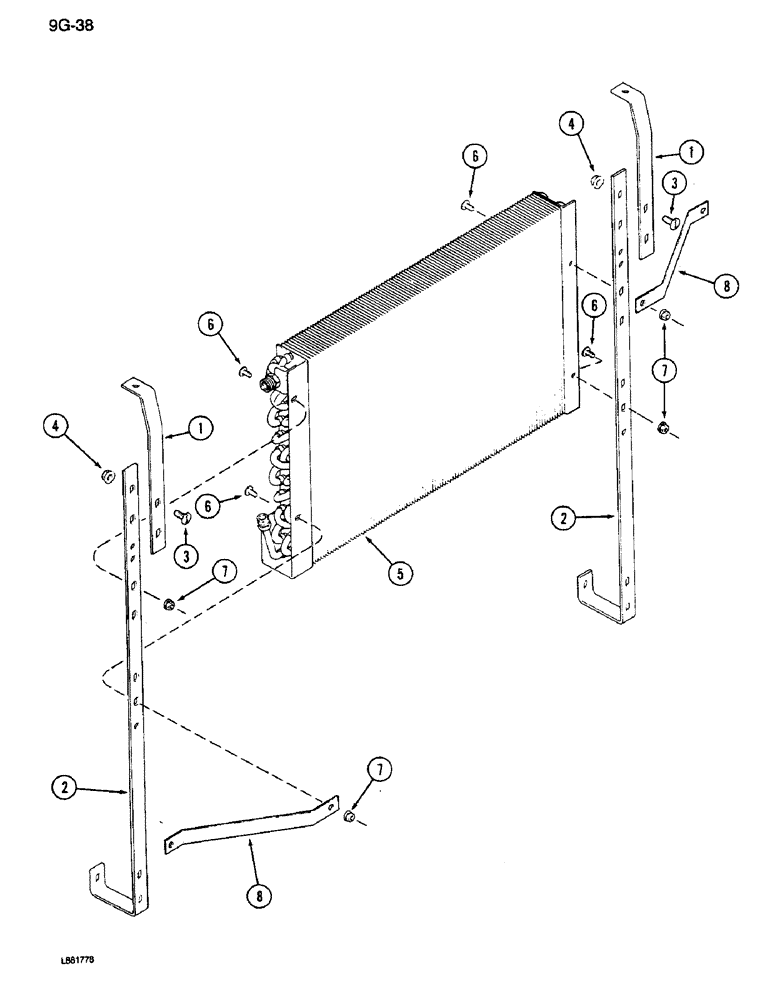

Схема запчастей Case IH 1640 - (9G-38) - CONDENSER COIL AND SUPPORTS (10) - CAB & AIR CONDITIONING
6
6
2
3
8
6
7
4
5
7
7
8
1
1
2
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1281758C2

BRACKET

SUPPORT - condenser upper

2шт.

2

1281759C3

SUPPORT

- condenser lower

2шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- truss head, 5/16 NC x 3/4 inch

6шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

6шт.

5

183901C2

CONDENSER

COIL - air conditioning condenser

1шт.

6

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

4шт.

7

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch

4шт.

8

1329945C1

BRACKET

- condenser

2шт.
