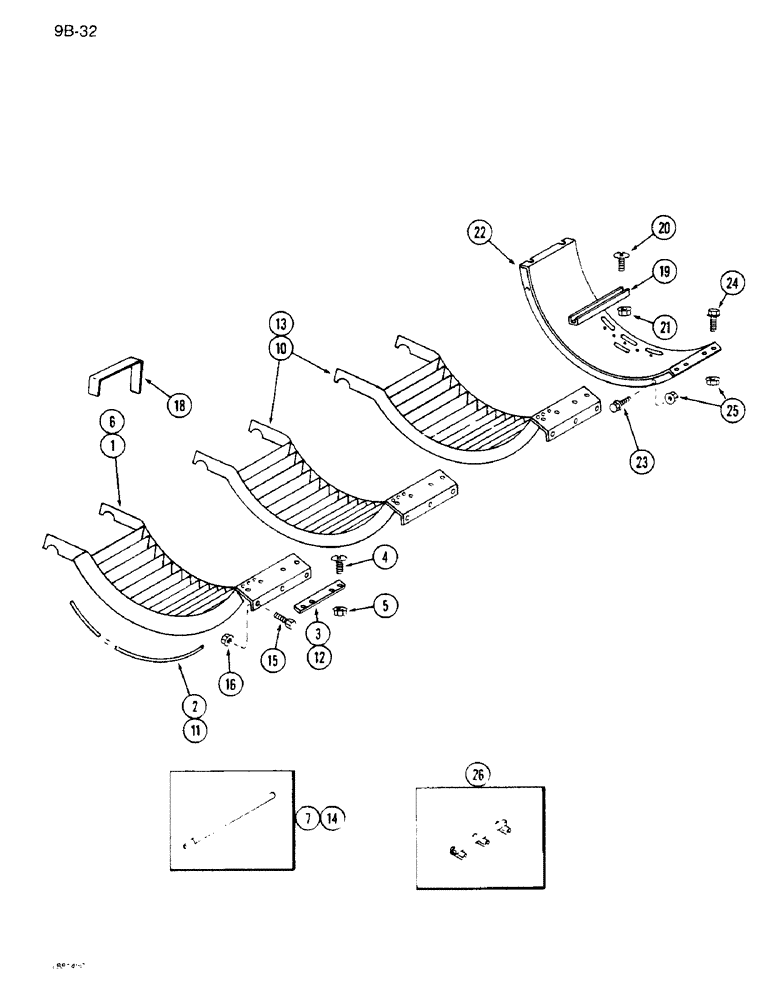

Запчасти Case IH 1640 (9B-32) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

1

1309208C3

CONCAVE

ASSEMBLY - front small wire, hardened, Includes: Ref. 2 and 3

1шт.

2

1302602C2

ROD

- concave, 3/16 x 29 inch long

30шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

1

1302606C5

CONCAVE

ASSEMBLY - front large wire, hardened, Includes: Ref. 2 and 3

1шт.

2

1302601C2

STEM

ROD - concave, 1/4 x 29 inch long

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

BOLT - truss head, 3/8 NC x 1 inch

1шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

6

1318553C1

CONCAVE

ASSEMBLY - small wire, extension, Includes: Ref. 7

1шт.

7

1318561C1

PIN

PIN - small wire

30шт.

6

1318551C1

CONCAVE

ASSEMBLY - large wire extension, Includes: Ref. 7

1шт.

7

1318560C1

LARGE PIN

PIN - large wire

14шт.

10

1302609C4

CONCAVE

ASSEMBLY - No. 2 and 3 small wire, grain, Includes: Ref. 11 and 12

2шт.

10

1302609C4

CONCAVE

ASSEMBLY - No. 2 and 3 small wire, corn, Includes: Ref. 11 and 12

1шт.

10

1309210C3

CONCAVE

ASSEMBLY - No. 2 and 3 small wire, grain (Heat treated), Includes: Ref. 11 and 12

2шт.

11

1302602C2

ROD

- concave small wire, 3/16 x 29 inch long

30шт.

12

193859C1

PLATE

BAR - concavc wire retaining

2шт.

10

1302607C4

CONCAVE

ASSEMBLY - No. 2 and 3 large wire, grain, Includes: Ref. 11 and 12

1шт.

10

1302607C4

CONCAVE

ASSEMBLY - No. 2 and 3 large wire, corn, Includes: Ref. 11 and 12

2шт.

11

1302601C2

STEM

ROD - concave, 1/4 x 29 inch long

14шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

1318554C1

CONCAVE

ASSEMBLY - No. 2 and 3 small wire extension, grain, Includes: Ref. 14

2шт.

13

1318554C1

CONCAVE

ASSEMBLY - No. 2 and 3 small wire extension, corn, Includes: Ref. 14

1шт.

14

1318561C1

PIN

PIN - small wire

30шт.

13

1318552C1

CONCAVE

ASSEMBLY - No. 2 and 3 large wire extension, grain, Includes: Ref. 14

2шт.

13

1318552C1

CONCAVE

ASSEMBLY - No. 2 and 3 large wire extension, corn, Includes: Ref. 14

2шт.

14

1318560C1

LARGE PIN

PIN - large wire

14шт.

15

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

1300673C91

PACKAGE

KIT - concave filler (Set of 6), Includes: Ref. 18

1шт.

18

1309425C1

CHANNEL

- concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT - concave filler (Set of 6), Includes: Ref. 18

1шт.

18

1309424C1

CHANNEL

- concave filler, large wire

6шт.

19

191536C1

CHANNEL

- grate adjusting, corn

7шт.

19

191536C1

CHANNEL

- grate adjusting, grain

21шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

1шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

22

191538C3

GRATE ASSY.

GRATE - slotted, grain

3шт.

22

191538C3

GRATE ASSY.

GRATE - slotted, corn (If equipped)

1шт.

22

1302562C1

CONCAVE

GRATE - keystock, grain

1шт.

22

1302562C1

CONCAVE

GRATE - keystock, corn and rice (If equipped)

1шт.

22

1319750C1

GRATE

- smooth, sunflower seed

1шт.

23

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8

1шт.

24

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex lock, 3/8 NC x 1 inch

1шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

26

1324046C2

BAR

- concave, filler, small wire

1шт.
