(9B-50) - CHAFFER SIEVE, (CONT)

Запчасти Case IH 1640 (9B-50) - CHAFFER SIEVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE

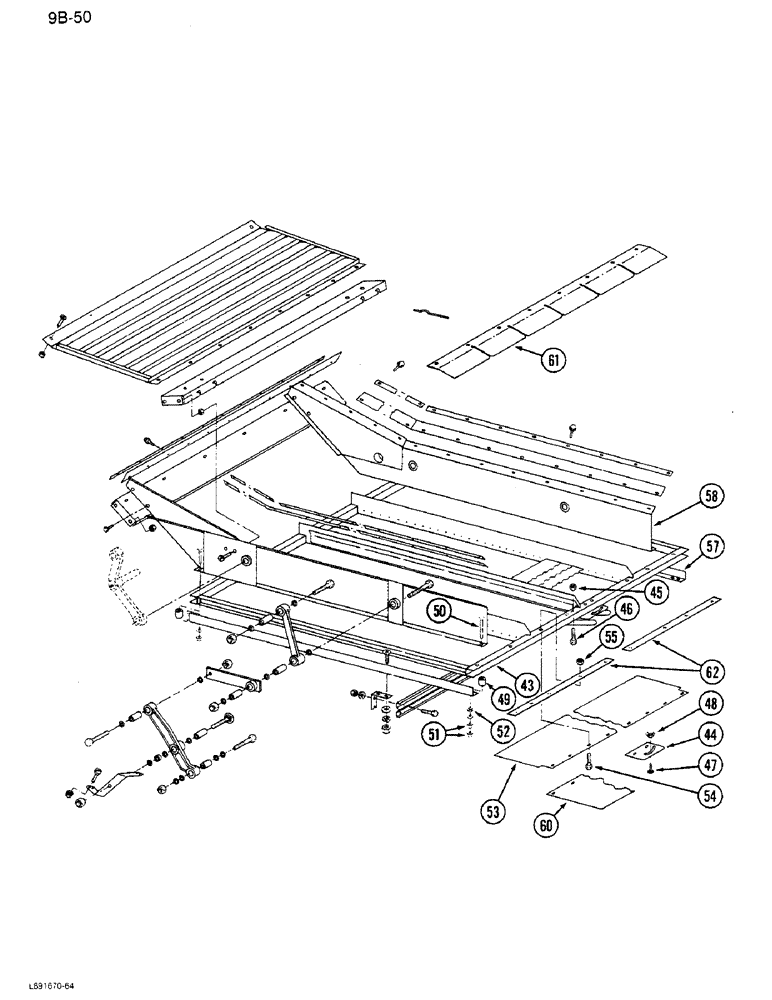

Схема запчастей Case IH 1640 - (9B-50) - CHAFFER SIEVE, (CONT) (14) - ROTOR, CONCANVES & SIEVE
55
50
52
58
61
47
48
51
44
60
54
53
57
62
43
46
45
49
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

43

1330685C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 close slat chaffer (Corn standard) (Optional for grain) (Includes Reference No. 44)

1шт.

43

1330684C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-1/8 adjustable chaffer (Standard for grain) (Includes Reference No. 44)

1шт.

43

1330686C1

GRAIN SIEVE

SIEVE ASSEMBLY - 1-5/8 corn chaffer (Standard for corn) (Optional for grain) (lncludes Reference No. 44)

1шт.

43

1957314C2

SIEVE

ASSEMBLY - 1-5/8 close slat chaffer (Long cleaning system)

1шт.

43

1957315C2

SIEVE

ASSEMBLY - 1-5/8 corn chaffer (Long cleaning system)

1шт.

43

1319092C3

GRAIN SIEVE

SIEVE ASSEMBLY - Peterson chaffer

1шт.

43

1970516C1

GRAIN SIEVE

SIEVE ASSEMBLY - Peterson chaffer (long cleaning system)

1шт.

44

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

45

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

2шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

47

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

48

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

49

612233R1

SPACER,5/8" Tube x 1 1/8"

- chaffer sieve support rear

2шт.

50

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch, Grade 8

2шт.

51

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

4шт.

52

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

53

195186C2

SEAL

SEAL - chaffer

1шт.

54

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

55

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

56

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 3/64 inch

8шт.

57

186370C1

ANGLE

- chaffer support, right

1шт.

58

185431C4

RAIL

- chaffer, right

1шт.

59

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger (Refer to shaker shaft and auger drive, see Figure 9B-42)

2шт.

60

1302784C1

STRIP

EXTENSION - chaffer

1шт.

61

1319258C1

COVER

- chaffer finger

1шт.

Part of Parts Kit, P/N 1319728C91

1шт.

62

1338343C1

RETAINER

- sieve, left

1шт.

62

1338344C1

RETAINER

- sieve, right

1шт.

1319278C91

PACKAGE

KIT - parts , alfalfa, Includes: rRef. 61 on Figures 9B-46 and 9B-50

1шт.
