(9C-12) - CLEANING FAN DRIVE, (CONT)

Запчасти Case IH 1640 (9C-12) - CLEANING FAN DRIVE, (CONT) (15) - BEATER & CLEANING FANS

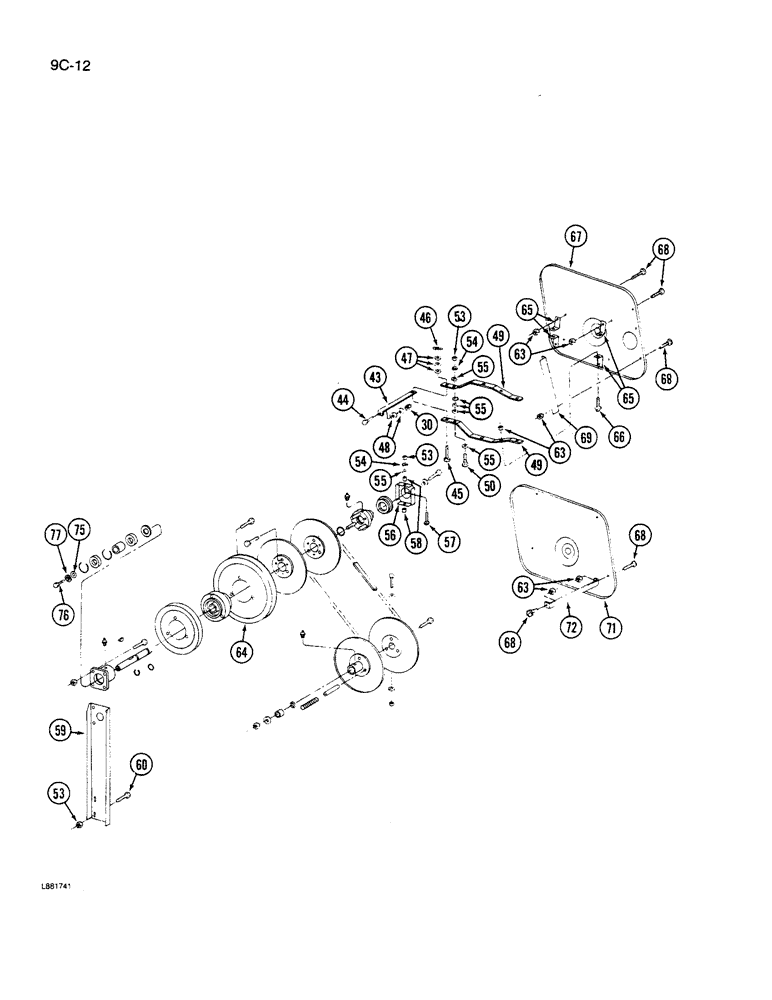

Схема запчастей Case IH 1640 - (9C-12) - CLEANING FAN DRIVE, (CONT) (15) - BEATER & CLEANING FANS
68
56
68
72
53
63
55
68
53
64
54
76
55
54
65
69
58
65
53
49
48
44
50
60
63
71
55
30
47
63
66
57
69
49
43
67
77
59
46
75
45
55
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

43

186283C1

SUPPORT

- fan drive control

1шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

1шт.

45

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, hardened, 3/8 x 1-1/2 inch, Grade 1

1шт.

46

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

48

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

2шт.

49

194850C2

SUPPORT

- fan control

2шт.

50

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- hex, 5/16 NC x 2 inch

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

55

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

56

194852C2

SUPPORT

- fan driver

1шт.

57

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

58

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

59

188128C1

CHANNEL

- fan hub

1шт.

60

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

7шт.

63

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

24шт.

64

REF

INSTRUCTION

PULLEY ASSEMBLY - cleaning unit drive, 13 inch O.D. (See Figure 9A-2 belt drive - fan jackshaft)

1шт.

65

194756C2

ANGLE

- fan drive pulley shield

4шт.

66

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex, 5/16 NC x 3/4 inch

2шт.

67

194758C2

SUPPORT

- fan jackshaft

1шт.

68

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

4шт.

69

186089C1

SHIELD

- elevator drive idler

1шт.

71

194759C4

GUARD

SHIELD - fan drive

1шт.

72

194760C1

SUPPORT

- lower shield

4шт.

195186C2

SEAL

SEAL - chaffer, rear

1шт.

75

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

1шт.

76

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

77

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.
