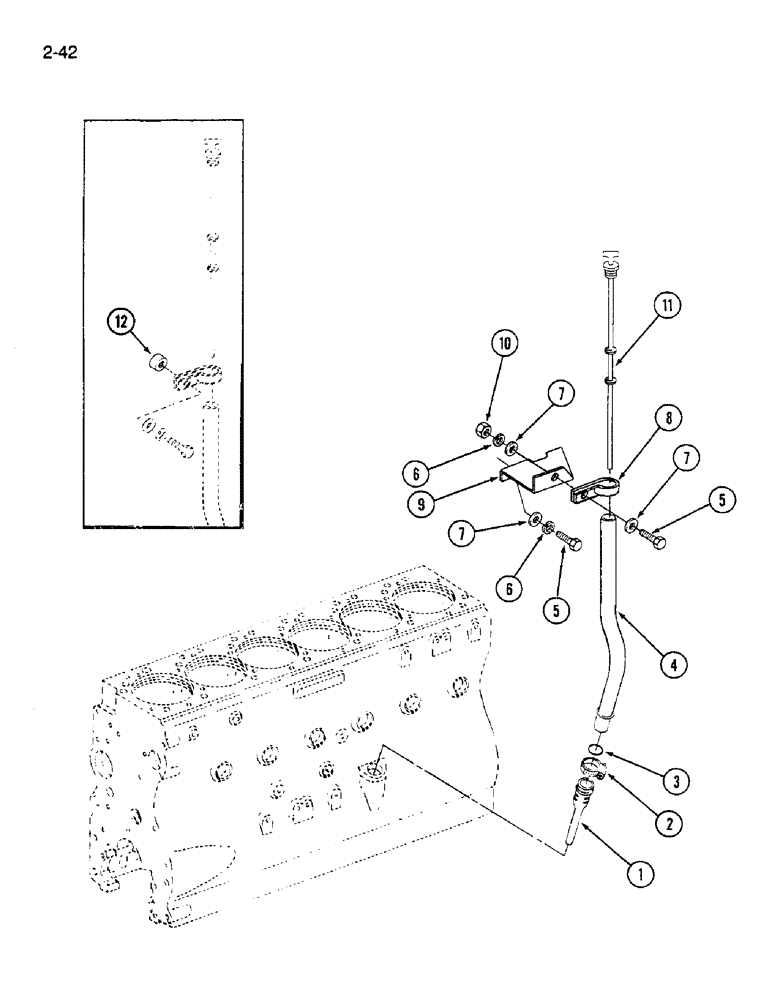

Запчасти Case IH 1640 (2-42) - OIL LEVEL GAUGE AND FILLER TUBE, D466 ENGINE (01) - ENGINE

1

691846C1

TUBE

- oil level

1шт.

2

690835C1

CLAMP

- tube

1шт.

3

60352D

GASKET

- tube seal

1шт.

4

1808159C1

TUBE,1.50" OD

- oil filler and gauge

1шт.

5

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

5

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

6

492-11038

LOCK WASHER,3/8"

3шт.

7

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened

4шт.

8

683823C1

CLAMP

- oil filler tube

1шт.

9

1808160C1

BRACKET

- pipe support

1шт.

10

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

1шт.

11

691946C1

ELECTRICAL GAUGE

GAUGE - oil level gauge (Replaced 691846C1 )

1шт.
