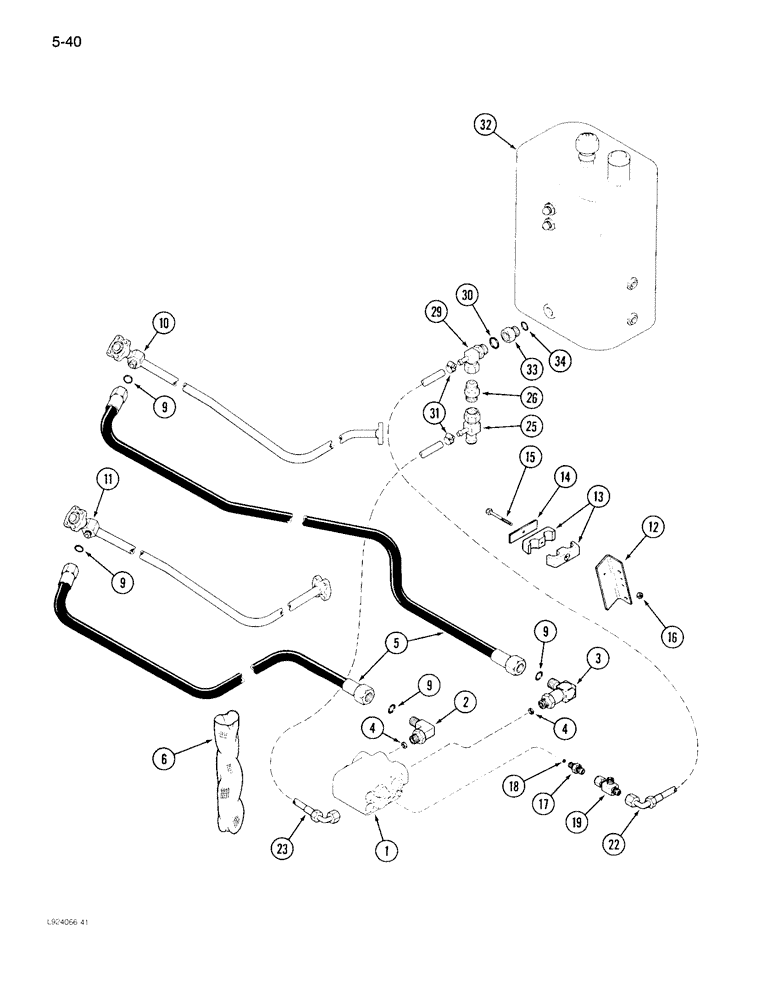

Запчасти Case IH 1640 (5-40) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, SERIAL NO. JJC0097190 & AFTER (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See Figure 5-52)

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face x 1-1/6-12 inch adj O-ring

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj 90º, 1 3/16"-12 x 1 1/16"-12 Sw, ORFS

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

2шт.

5

1989218C1

HOSE

ASSEMBLY - valve pressure, 1 965 mm

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - hose, nylon 1 219 mm

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

6шт.

10

1541756C1

PIPE

TUBE ASSEMBLY - forward pressure

1шт.

11

1541757C1

TUBE

ASSEMBLY - reverse pressure

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

1шт.

14

1324469C1

PLATE

- clamp, hose

1шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

16

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - jump size, 3/4-16 x 9/16-18 inch thread

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 3/4-16 inch thread

1шт.

22

1957283C3

HOSE

- housing drain, 1/2 ID x 134 inch

1шт.

23

1979706C1

HOSE

ASSEMBLY - case drain

1шт.

25

1979655C1

TEE

- wheel motor flush

1шт.

26

1343558C1

VALVE

ASSEMBLY - bypass, power guide axle

1шт.

29

1979760C1

TEE

- return

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

31

244713

SPARE PART

CLAMP - hose

2шт.

32

REF

INSTRUCTION

RESERVOIR - hydraulic (See Figure 8-002 or 8-004)

1шт.

33

1979767C1

ADAPTER

- reducer, 3/4 ORB x 1 inch ORB

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
