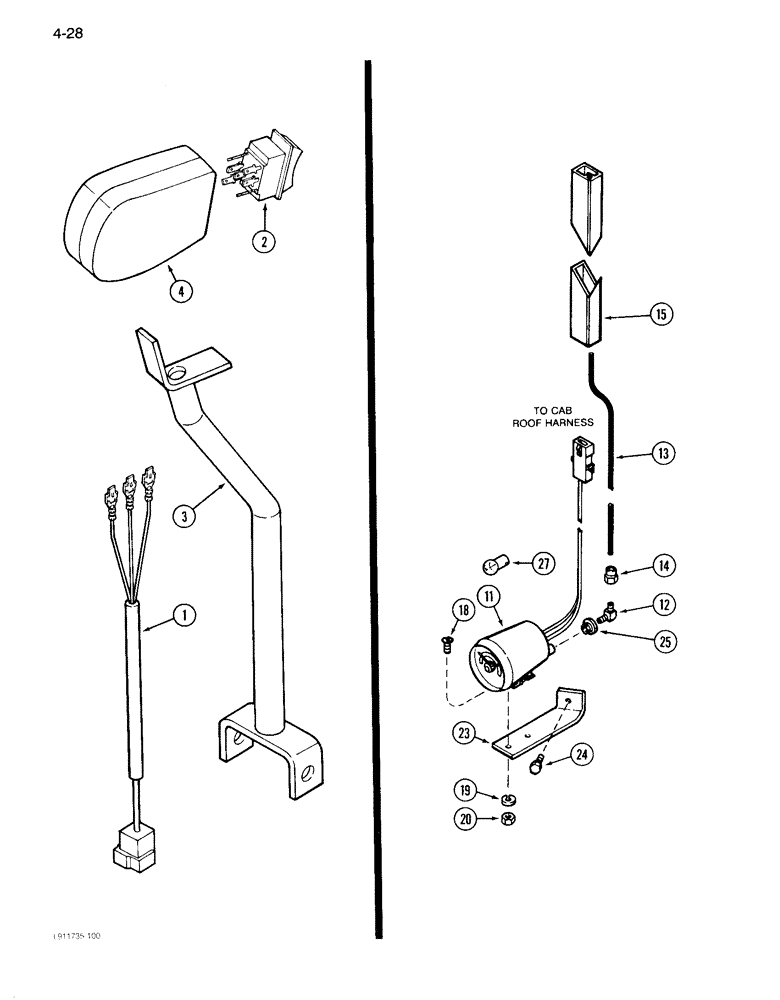

Запчасти Case IH 1640 (4-28) - HEADER LIFT HANDLE HARNESS (06) - ELECTRICAL

1

245245C2

HARNESS

- header lift handle

1шт.

2

91926C1

SWITCH

- header lift control

1шт.

3

REF

INSTRUCTION

ARM - propulsion control (See figure 6-14)

1шт.

4

REF

INSTRUCTION

HANDLE - propulsion control arm (See Figure 6-14)

1шт.

11

1977144C3

GAUGE ASSY.

MONITOR - power boost, 30 PSI

1шт.

12

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

- 90 degree, 1/8 inch PT, power boost monitor

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - engine to monitor, 204 inch long (Order 1954063C1, cut to length), power boost

1шт.

14

1977102C1

FITTING

CONNECTOR - tube retaining, power boost monitor

1шт.

15

1977142C1

CONDUIT

- harness and tubing, power boost monitor

1шт.

18

368-10810

SCREW,Sl Oval Hd, #8 - 32 x 5/8"

- oval head slotted, No. 8-32 x 5/8 inch, power boost monitor

2шт.

19

392-11008

LOCK WASHER,#8

power boost monitor #8

2шт.

20

225-13108

NUT,#8-32

Power boost monitor #8-32

2шт.

23

1979103C2

ANGLE

BRACKET - monitor support, power boost

1шт.

24

25653R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, power boost monitor

1шт.

25

1989678C1

FITTING

REDUCER - fitting, 22 mm male to 1/8 inch female PT, power boost monitor

1шт.

1979215C1

TAPE

- adhesive (Not Shown), power boost monitor

1шт.

27

28791R1

BULB

- monitor, power boost

1шт.
