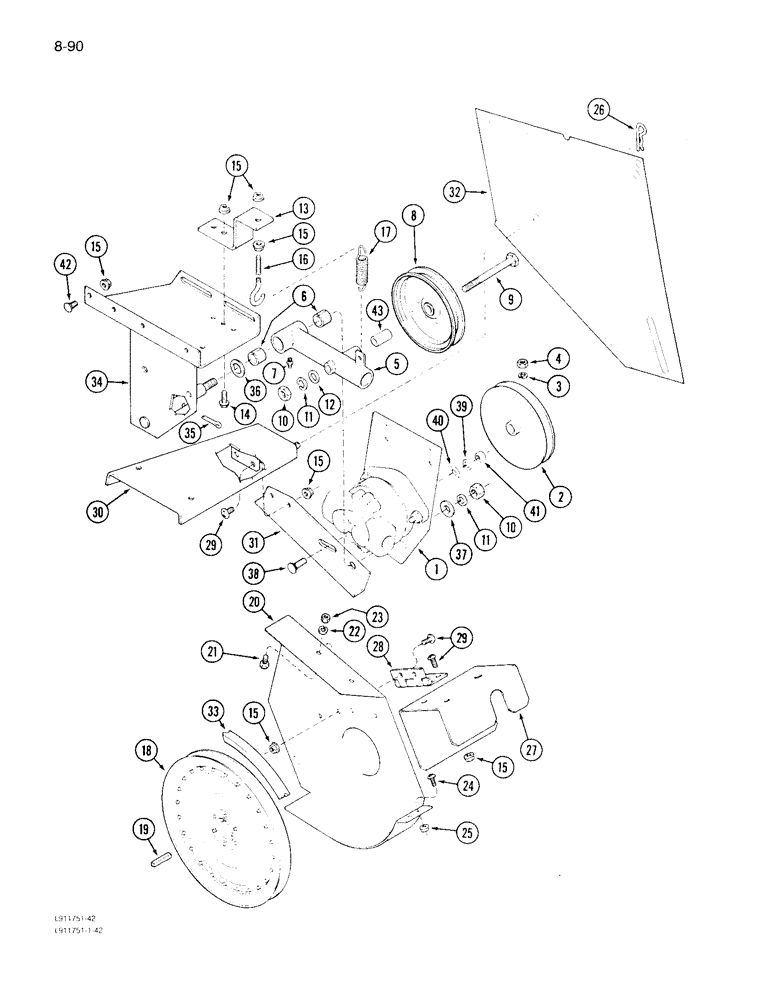

Запчасти Case IH 1640 (8-090) - REEL PUMP DRIVE, P.I.N. JJC0034860 THROUGH JJC0097170 (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Figure 8-122)

1шт.

2

1330177C1

PULLEY

- pump driven

1шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

1321612C92

LEVER ASSY.

ARM ASSEMBLY - pump tightener (47 inch feeder) (Used with 5 inch pulley), Includes: Ref. 6

1шт.

5

1979653C1

ARM

ASSEMBLY - pump tightener (47 inch feeder) (Used with 6 inch pulley), Includes: Ref. 6

1шт.

5

1979598C1

LEVER

ARM ASSEMBLY - pump tightener (54-1/2 inch feeder), Includes: Ref. 6

1шт.

6

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 PT x 17/32 inch

1шт.

8

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- belt idler, 6 inch OD (47 and 54-1/2 inch feeder)

1шт.

9

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

13

1321687C1

BRACKET

SUPPORT - spring adjusting bolt

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - hex flange lock, 3/8 NC x 3/4 inch

2шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

14шт.

16

1315487C1

BOLT,3/8" - 16 x 205mm

EYEBOLT - spring tightener

1шт.

17

398763R2

SPRING

- tightener

1шт.

18

1330403C1

PULLEY

- feeder jackshaft pump drive

1шт.

Part number 1330403C1 is: O.D.= 344.18MM...SHAFT DIA= 38.23/38.13MM WIDTH OF BELT GROOVE= 16.510MM (.650"). 1321647C1 IS THE SAME EXCEPT THE WIDTH OF THE BELT GROOVE IS 22.733MM (.895"). bj 7-31-97

1шт.

19

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

1шт.

20

1345353C1

GUARD ASSY.

SHIELD - reel drive pulley

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

26

480523R1

HAIR PIN COTTER

quick attachable

5шт.

27

1321848C3

GUARD

SHIELD - feeder jackshaft, left

1шт.

28

10810R

HINGE

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

6шт.

30

1321648C1

SUPPORT

ASSEMBLY - shield lower rear

1шт.

31

1321651C1

SUPPORT

- pivot lower

1шт.

32

1321889C2

SHIELD

SUPPORT - reel pump drive (47 inch feeder)

1шт.

32

1322444C1

SUPPORT

- reel pump drive (54-1/2 inch feeder)

1шт.

33

1979606C1

V-BELT,16.00 mm W x 1480.85 mm L

Reel drive (47 inch feeder) 16.00 mm W x 1480.85 mm L

1шт.

33

1330311C1

V-BELT,1828.65 mm L

Reel Drive, 54-1/2 Inch Feeder 1828.65 mm L

1шт.

34

1315494C1

SUPPORT

ASSEMBLY - reel pump

1шт.

35

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

37

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

38

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

42

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

43

478061R1

SPACER,1/2" X-Strng Pipe x 3 1/16"

- crank adjuster

1шт.
