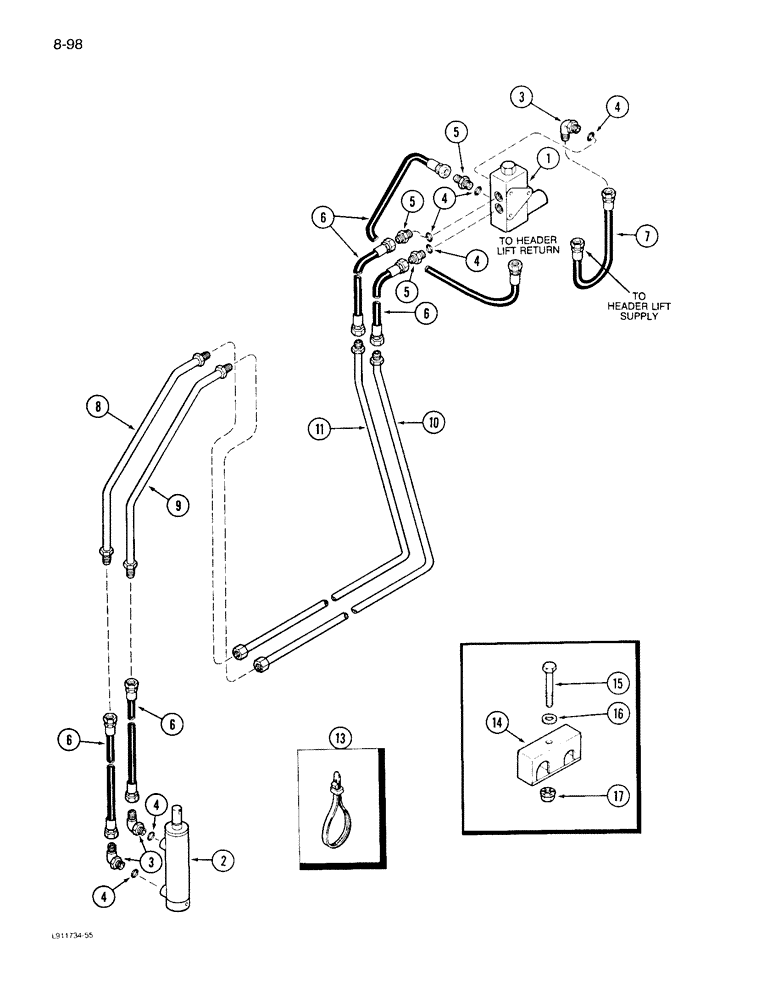

Запчасти Case IH 1640 (8-098) - FEEDER CLUTCH SYSTEM, CONTROL CONCEPTS, PRIOR TO SERIAL NO. JJC0097190 (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder clutch (See Figure 8-110)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Figure 8-112)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16-18 thread

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 3/8 inch 9/16-18 thread

3шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Feeder clutch 9.52 mm ID x 535.00 mm

5шт.

7

632455R91

HOSE

ASSEMBLY - feeder clutch, 5/16 ID x 14 inch

1шт.

8

196793C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

9

196823C2

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

10

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

- Tube Assy - Feeder clutch upper forward 6.35 mm ID x 3050.00 mm

1шт.

11

196748C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch upper rearward

1шт.

13

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

14

183825C1

CLAMP

- feeder clutch tubes

4шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

16

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

4шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

4шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.
