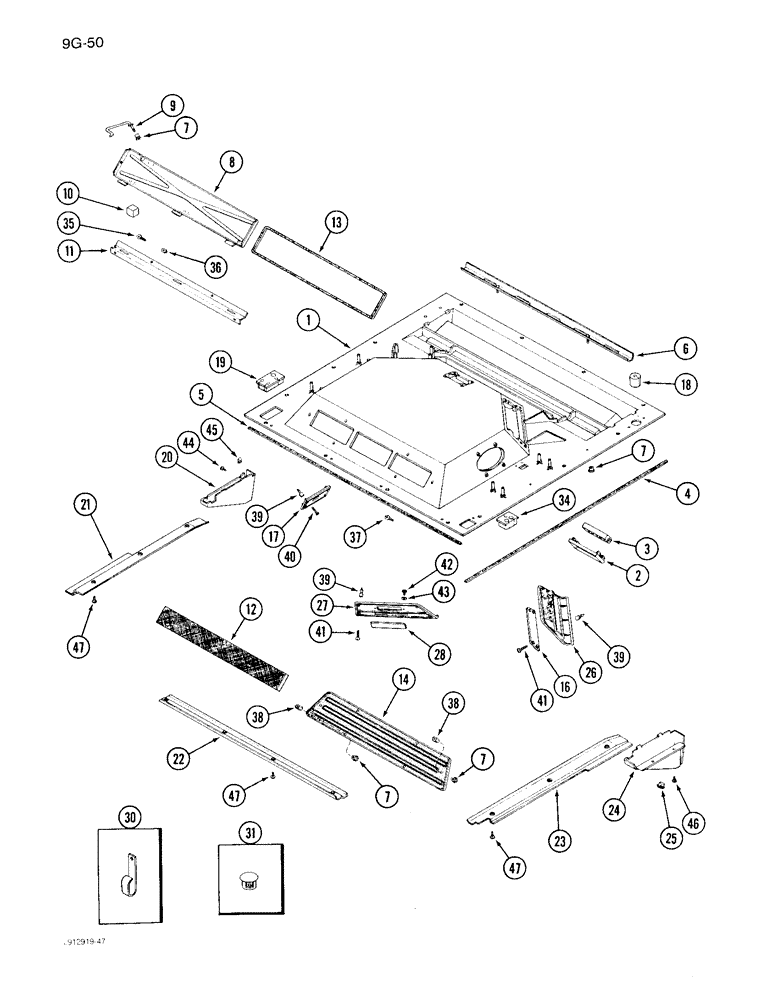

Запчасти Case IH 1640 (9G-50) - CAB HEADLINER (10) - CAB & AIR CONDITIONING

1

1329973C93

PANEL ASSY.

PANEL ASSEMBLY - headliner, cab (Replaces 1276232C93), Includes: Insulator

1шт.

1329975C3

INSULATOR

- accoustical headliner

1шт.

2

1280402C1

PANEL

- louver frame

4шт.

3

109227C1

VENT

- louver

4шт.

4

NSS

NOT SOLD SEPARAT

STRIP - side, 54 inch (Order 182747C1, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - front and rear, 56-3/4 inch (Order 182747C1, Serial Range: cut-length)

1шт.

6

1321268C2

COVER

- defroster vent

1шт.

7

97135C1

KNOB

- control (Round top)

9шт.

7

1321356C1

KNOB

- control (Flat top)

9шт.

8

117621C2

DOOR

- recirculating air

1шт.

9

1276293C2

ROD

- control

1шт.

10

118345C1

BUMPER

- recirculating door. attach to roof assembly

1шт.

11

111666C2

SUPPORT

- door

1шт.

12

109240C1

CAB FILTER

FILTER - air recirculation

1шт.

13

84157C1

SEAL

STRIP - recirculation door seal, 39-13/32 inch

2шт.

14

109282C2

SIEVE

GRILLE - recirculating, air filter

1шт.

16

1280327C1

PANEL

- insert, controls

1шт.

17

1321259C1

PANEL

- control trim

1шт.

18

1283457C3

SEAL

- monitor harness, right front and rear

1шт.

19

1283459C4

GROMMET

SEAL - left rear corner

1шт.

20

1276270C1

PANEL

- headliner trim, left front

1шт.

21

1280092C1

PANEL

- headliner trim, left rear

1шт.

22

1276235C2

PANEL

- headliner trim, rear

1шт.

23

1280093C2

PANEL

- headliner trim, right rear

1шт.

24

1276271C1

PANEL

- headliner trim, right front

1шт.

25

353-412

PLUG,Dome, 1.093" hole, Nylon

- plastic

1шт.

26

1280212C3

PANEL

- cab control

1шт.

1283031C2

DECAL

- control panel (Heater and air conditioning)

1шт.

1283479C2

DECAL

- control panel (Heater only)

1шт.

27

1280182C2

PANEL

- radio and clock

1шт.

28

1321384C1

PANEL

- radio insert

1шт.

30

395467R2

CLIP

- heater hose attaching

2шт.

31

353-406

PLUG,Dome, .625" hole, Nylon

- plastic 16 mm diameter hole

3шт.

31

353-411

PLUG,Dome, 1.000" hole, Nylon

(25.4 mm) (Heater only) Dome, 1.000" hole, Nylon

1шт.

31

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm) (Heater only) Dome, .500" hole, Nylon

1шт.

34

1327770C2

SEAL

- cab harness hose, right rear

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - special,3/8 x 3/4 inch

2шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch

2шт.

37

261-33724

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1-1/2 inch

4шт.

37

260-13728

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/4"

SCREW - self-tapping, pan Phillips, 1/4-14 x 1-3/4 inch

2шт.

38

1250628C2

SPACER

- grille spacer

6шт.

39

117995C1

PACKAGE

FASTENER KIT - plastic toggle (Includes 5 fasteners)

1шт.

40

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW - poly seal tapping, No. 8-18 x 1-3/4 inch

4шт.

41

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - pan head, No. 8-18 x 1/2 inch

8шт.

41

260-53524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW - pan head tapping, No. 10-16 x 1-1/2 inch

4шт.

42

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

2шт.

43

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 3/64 inch

2шт.

44

260-13412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/4 inch

2шт.

45

445435

SPRING NUT,U, #10-24

- No. 8-18, U-spring, Style 1

2шт.

46

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

2шт.

47

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

10шт.
