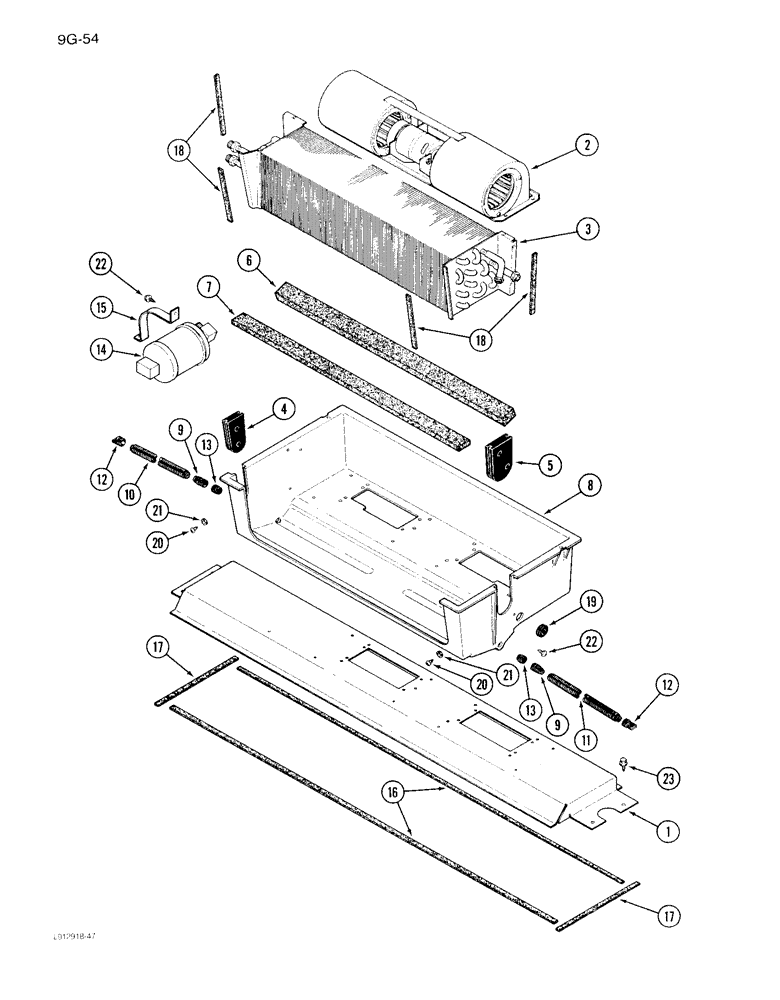

Запчасти Case IH 1640 (9G-54) - EVAPORATOR-HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

REF

INSTRUCTION

BLOWER ASSEMBLY - pressurizer (See Figure 9G-56)

1шт.

3

1974632C2

HEAT-EXCHANGER

CORE ASSEMBLY - evaporator, Includes: Ref. 4, 5 , Expansion Valve & O-Ring

1шт.

4

1250463C2

GROMMET

- evaporator tubes (Rubber)

1шт.

5

1250464C2

GROMMET

- heater tubes (Rubber)

1шт.

REF

INSTRUCTION

VALVE - expansion (See Figure 9G-62)

1шт.

REF

INSTRUCTION

O-RING - expansion valve (See Figure 9G-62)

2шт.

6

84123C1

STRIP

- core front

1шт.

7

84124C1

STRIP

- core rear (Order 1974883C1, Serial Range: cut-length)

1шт.

8

135776C2

HOUSING

- core

1шт.

9

1250522C3

FITTING

FITTING - drain, Serial Range: hose-housing

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - condensate left, 90 inch (Order 198091C1, Serial Range: cut-length)

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - condensate right, 134 inch (Order 198091C1, Serial Range: cut-length)

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

1964826C1

GROMMET

GR0MMET - condensate hose, 3/4 round, 20 mm long

2шт.

13

195806C1

GROMMET

- condensate hose, round, 27 mm long

2шт.

14

143469C2

RESERVOIR

RECEIVER - DRIER

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - pan head tapping, No. 10-16 x 3/4 inch

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 50 inch (Order 187874C1, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 10 inch (Order 187874C1, Serial Range: cut-length)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - core to housing, 6-1/2 inch (Order 187874C1, Serial Range: cut-length)

1шт.

19

83931C1

GROMMET

- blower harness

1шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - No. 10-16 x 1/2

4шт.

21

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - pan head tapping, No. 10-16 x 3/4 inch

10шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, 1/4-14 x 1 inch

4шт.
