(9G-58) - CONDENSER COIL AND SUPPORTS

Запчасти Case IH 1640 (9G-58) - CONDENSER COIL AND SUPPORTS (10) - CAB & AIR CONDITIONING

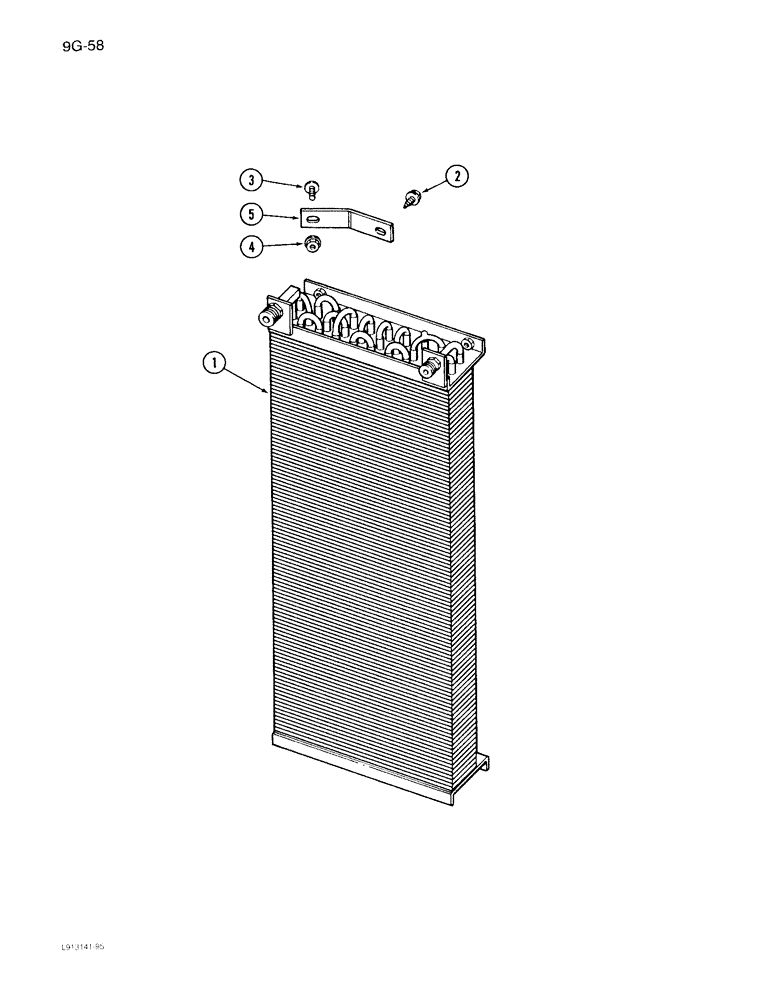

Схема запчастей Case IH 1640 - (9G-58) - CONDENSER COIL AND SUPPORTS (10) - CAB & AIR CONDITIONING
1
3
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84581C1

CONDENSER

COIL - air conditioning condenser

1шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- truss head, 5/16 NC x 3/4 inch

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock,5/16 inch

2шт.

5

1324915C1

SUPPORT

BRACKET - condenser support

2шт.
