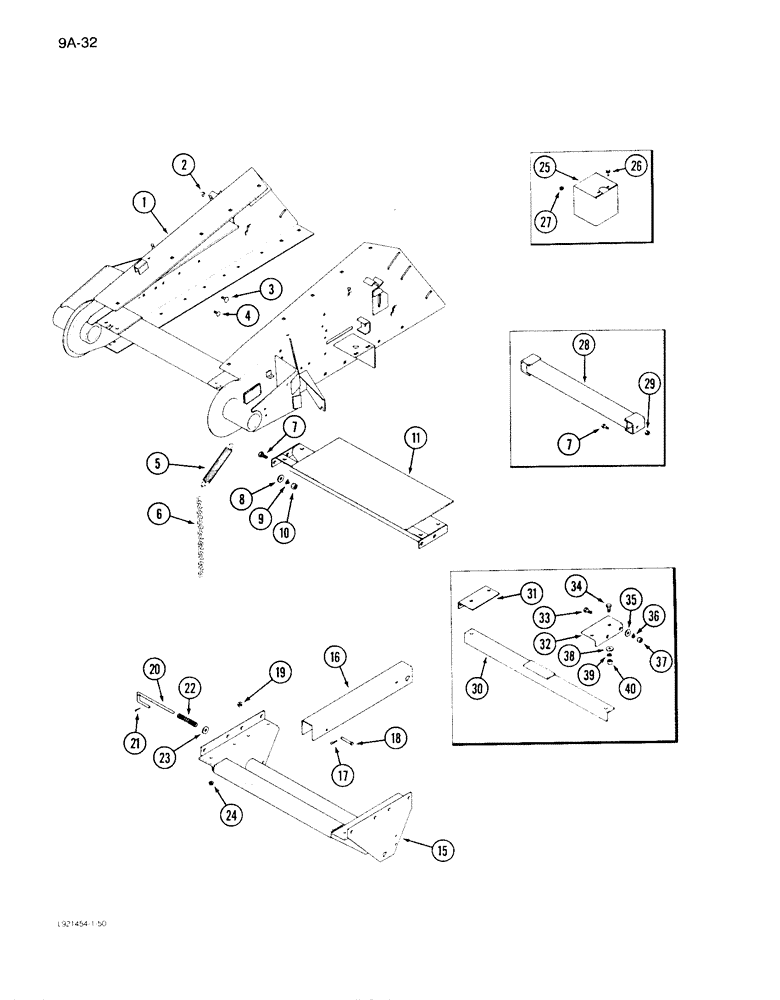

Запчасти Case IH 1640 (9A-32) - FEEDER, LIFT BRACKET AND SUPPORTS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder (See Figure 9A-30)

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

8шт.

3

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 x 1-1/2 inch NC

1шт.

4

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

5

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

6

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

8

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

1345329C1

SUPPORT

- reinforcement

1шт.

15

197382C3

SUPPORT

BRACKET - support, lift (47 inch feeder)

1шт.

15

187102C3

SUPPORT

BRACKET - support, lift (54-1/2 inch feeder)

1шт.

16

197554C3

CHANNEL

- lock, lift cylinder

1шт.

17

586591R1

COTTER PIN

PIN - cotter, hair type, 1/8 inch diameter

1шт.

18

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex lock special, 1/2 inch NC

1шт.

20

197849C1

ROD

- lock, cylinder

1шт.

21

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

22

M296

SPRING

- compression

1шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

8шт.

25

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

26

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

27

403276R1

NUT

- speed, 5/16 inch

2шт.

28

187192C1

SUPPORT ASSY.

SUPPORT - rear bottom (With rock trap)

1шт.

29

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

30

1319744C1

SUPPORT ASSY.

STIFFENER - support, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

1шт.

31

175913C1

ANGLE

- adapter, left, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

1шт.

32

175914C1

ANGLE

- adapter, right, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

4шт.

34

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

2шт.

35

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Prior to P.I.N. JJC0034927 1/2", Serial Range: -JJC0034927

4шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Prior to P.I.N. JJC0034927 1/2"-13, G5, Serial Range: -JJC0034927

4шт.

38

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 x 1-1/4 x 3/64 inch, prior to P.I.N. JJC0034927, Serial Range: -JJC0034927

2шт.

39

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Prior to P.I.N. JJC0034927 5/8", Serial Range: -JJC0034927

2шт.

40

425-1010

NUT,5/8"-11, G5

Prior to P.I.N. JJC0034927 5/8"-11, G5, Serial Range: -JJC0034927

2шт.
