(9C-16) - CLEANING FAN DRIVE, P.I.N. JJC0097191 AND AFTER (CONTD)

Запчасти Case IH 1640 (9C-16) - CLEANING FAN DRIVE, P.I.N. JJC0097191 AND AFTER (CONTD) (15) - BEATER & CLEANING FANS

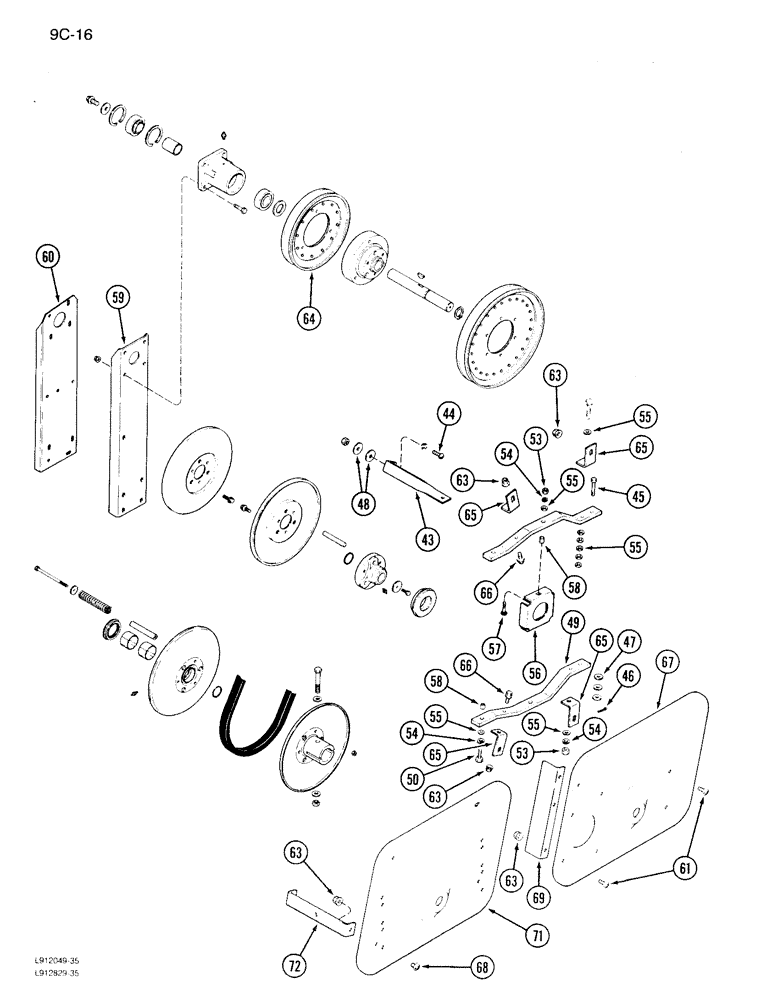

Схема запчастей Case IH 1640 - (9C-16) - CLEANING FAN DRIVE, P.I.N. JJC0097191 AND AFTER (CONTD) (15) - BEATER & CLEANING FANS
66
71
55
55
66
65
69
54
55
63
46
64
65
65
56
63
48
63
72
63
59
65
54
44
55
55
53
60
68
58
49
58
47
61
53
63
45
50
57
54
43
67
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

43

186283C1

SUPPORT

- fan drive control

1шт.

44

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss, 3/8 NC x 1 inch

1шт.

45

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, hardened, 3/8 x 1-1/2 inch, Grade 1

1шт.

46

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

3шт.

48

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

49

194850C2

SUPPORT

- fan control

2шт.

50

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

54

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

55

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

56

194852C2

SUPPORT

- fan driver

1шт.

57

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

58

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

59

188128C1

CHANNEL

- fan hub

1шт.

Check part carefully before ordering.

1шт.

60

1541632C1

SUPPORT

CHANNEL - fan hub

1шт.

Check part carefully before ordering.

1шт.

61

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

3шт.

61

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

4шт.

63

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

20шт.

63

231-5146

FLANGE NUT,3/8"-16

4шт.

64

REF

INSTRUCTION

PULLEY ASSEMBLY - cleaning unit drive, 13 inch OD (See Figure 9A-02)

1шт.

65

194756C2

ANGLE

- fan drive pulley shield

4шт.

66

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex, 5/16 NC x 3/4 inch

2шт.

67

194758C2

SUPPORT

- fan jackshaft

1шт.

68

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss, 5/16 NC x 1/2 inch

4шт.

69

186089C1

SHIELD

- elevator drive idler

1шт.

71

194759C4

GUARD

SHIELD - fan drive

1шт.

72

194760C1

SUPPORT

- lower shield

4шт.
